Rear Height Adjustment Motor (Rear Motor)

Rear Height Adjustment Motor (Rear Motor)

Preparations

Remove:
- the seat from car.
- the connectors.

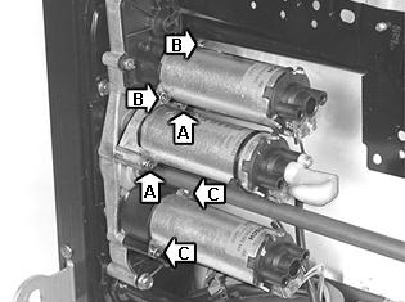

Removing the rear motor

Remove:







- two screws (C).
- the motor.

Install:
- In reverse order.
- Tightening torque for the seat to the floor: 48 Nm.
