Front-Rear Adjustment Motor (Center Motor)

Front-Rear Adjustment Motor (Center Motor)

Preparations

Remove:
- the seat from car.
- the connectors.

Removing the center motor

Remove:

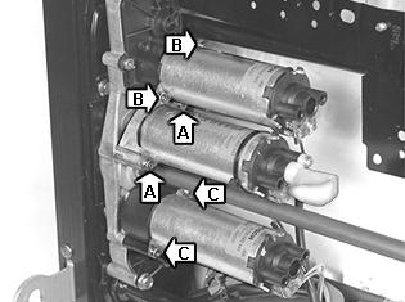

- two screws (A).
- the motor.

Install:
- In reverse order.
- Tightening torque for the seat to the floor: 48 Nm.
