Front Height Adjustment Motor (Front Motor)

Front Height Adjustment Motor (Front Motor)

Preparations

Remove:
- the seat from car.
- the connectors.

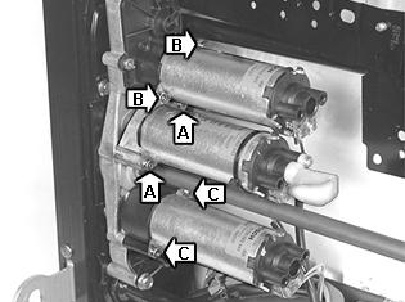

Removing the front motor
- Remove one screw and spacer (B).

Remove:










- two screws (B) and (R).
- the motor.

Install:
- In reverse order.
- Tightening torque for the seat to the floor: 48 Nm.
