Power Seat Drive Gear: Service and Repair

Power seat gear

Preparations

Remove:
- the seat from the car.
- middle motor.
- front motor.
- rear motor.
- two screws for the cross stay.
- the seat rail.

Replacing gear

Remove:

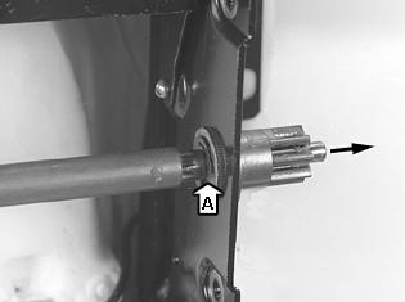

- snap ring (A).
- drive shaft.
- Release the gear shaft by pushing the drive shaft towards it.
- Angle out and remove the shaft.

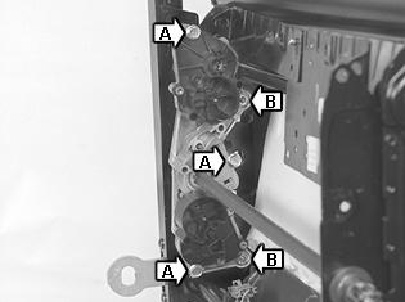

- two screws (A).
- two nuts (B) and (D).

Install:
- In reverse order.
