Convertible System Signal Specification

Convertible system signal specification

General
The convertible system only functions when the ignition is on.
Control module terminals A1- A30 and C1- C16 are positioned on adapter 981 3194 Replaced by 9511495 981 3194 Replaced by 951 1495.
Control module terminals B1- B8 and D1- D14 are positioned on adapter 951 1496 Adapter 8-14-pin 951 1496 Adapter 8-14-Pin.

Note! It is important that the breakout box is connected and that the ground terminals have been checked before readings are taken. See Checking the ground terminals Connecting the Breakout Box.

See the convertible system wiring diagram for the relevant model year. See service information.

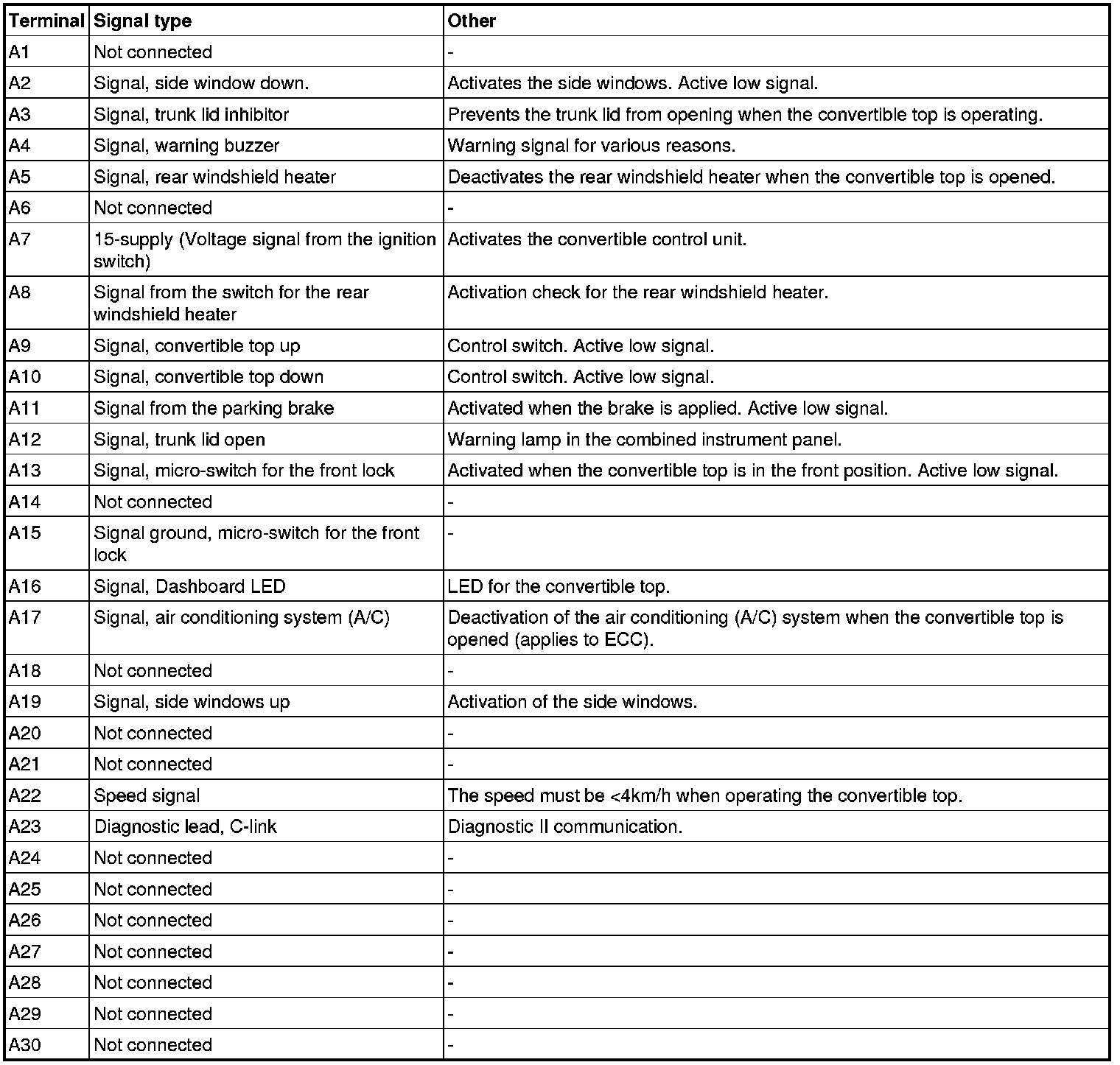

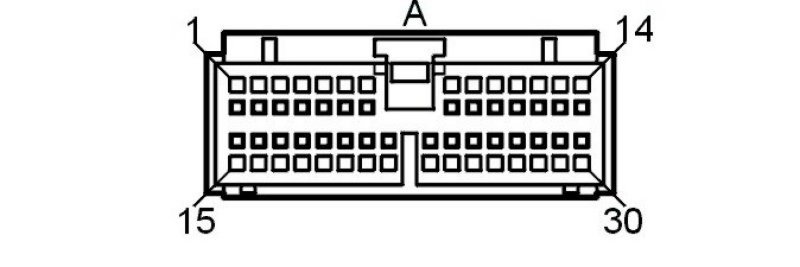

Connector A; A1- A30




All values specified below are between the terminals in column 1 and a ground point in the car or in adapter wiring 951 1496 Adapter 8-14-pin 951 1496 Adapter 8-14-Pin terminal #5 (connection of an additional breakout box is required in the latter case).
Control module terminals A1- A30 correspond to terminals #1- #30 on the breakout box.

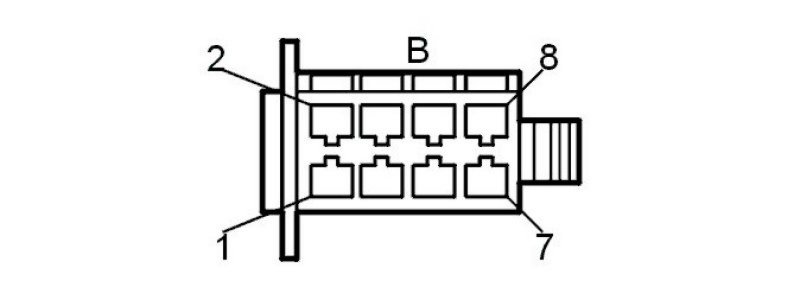

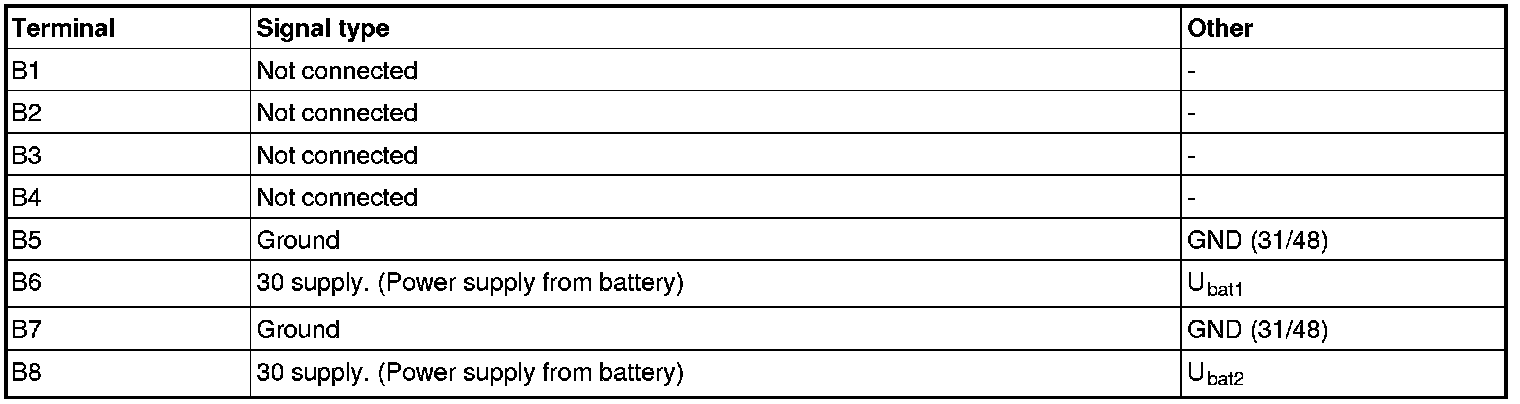

Connector B; B1-B8




All the values given below are between the terminals stated in column 1 and terminal B5 (ground, 31/48).
Control module terminals B1- B8 correspond to terminal 1- 8 on the breakout box.

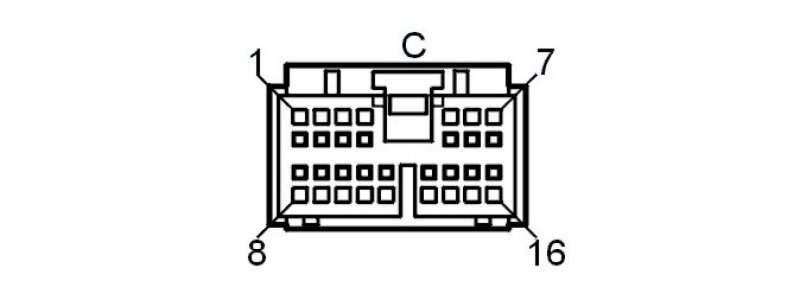

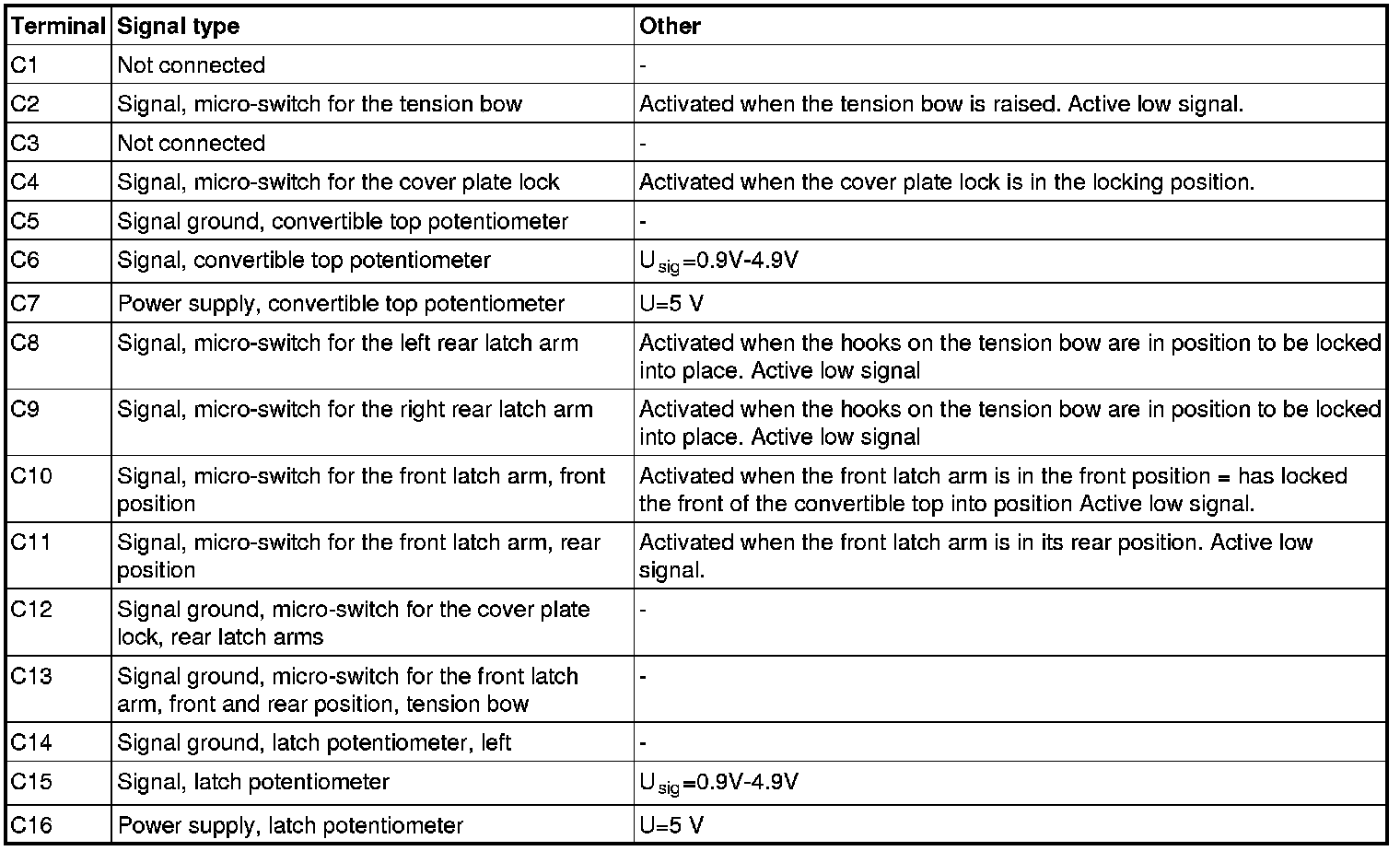

Connector C; C1- C16




All values specified below are between the terminals in column 1 and a ground point in the car or in adapter wiring 951 1496 Adapter 8-14-pin 951 1496 Adapter 8-14-Pin terminal #5 (connection of an additional breakout box is required in the latter case).
Control module terminals C1- C16 correspond to terminals #31- #46 on the breakout box.

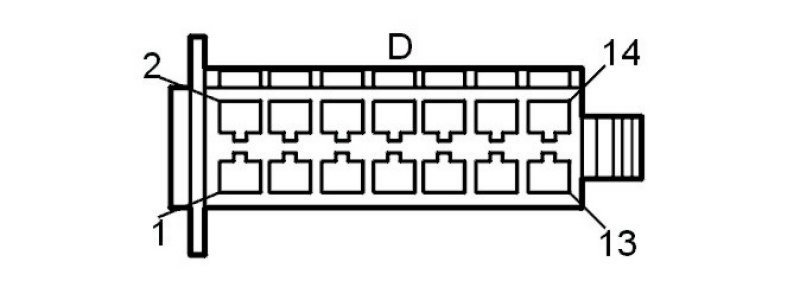

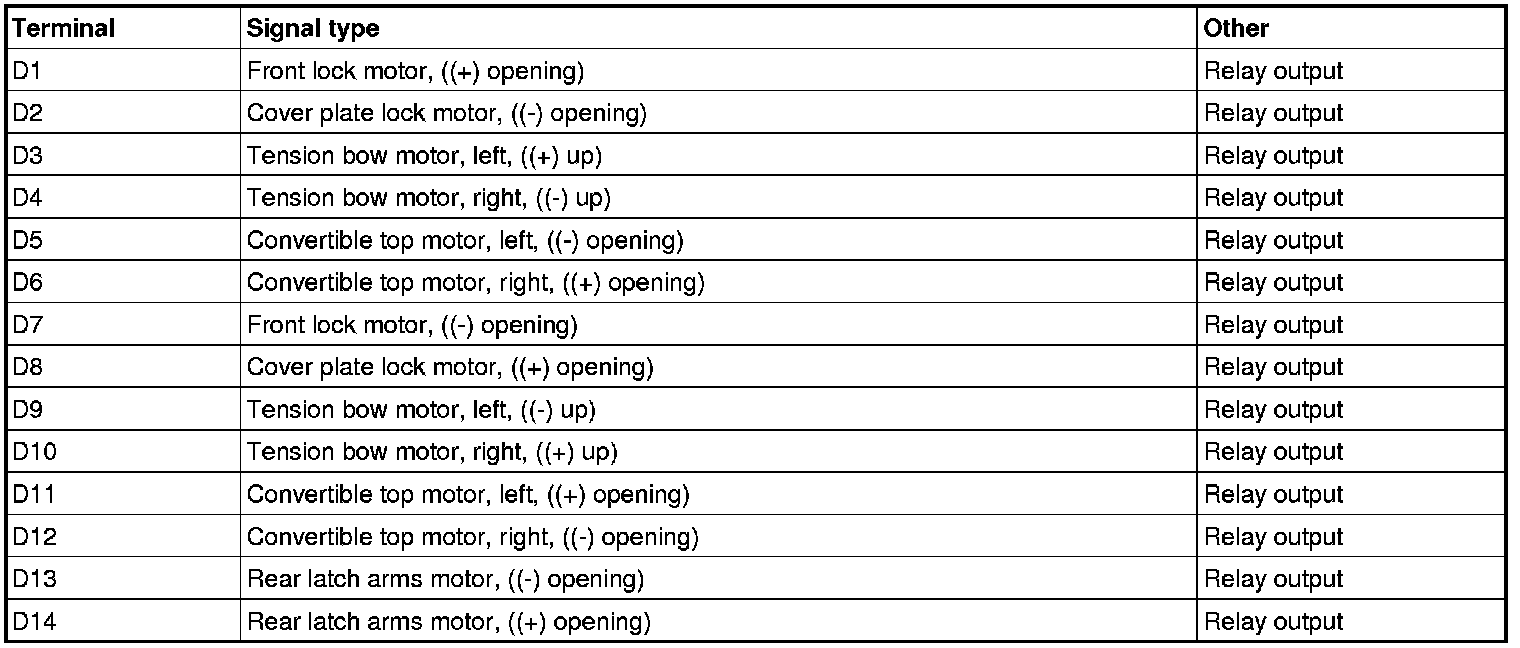

Connector D; D1- D14




All the values given below are between the terminals stated in column 1 and terminal B5 (ground, 31/48).
Control module terminals D1- D14 correspond to 11- 24 on the breakout box.
