Function Description of the Convertible Top Sequence






Function description of the convertible top sequence

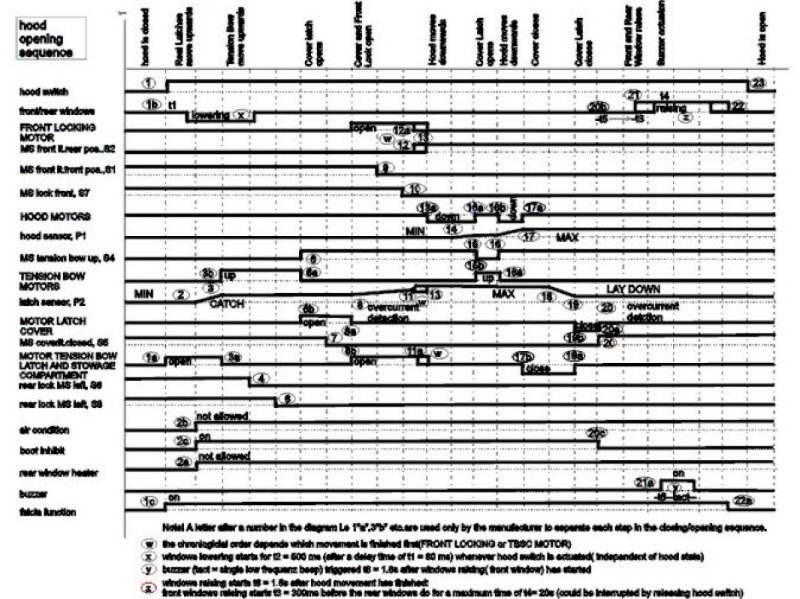

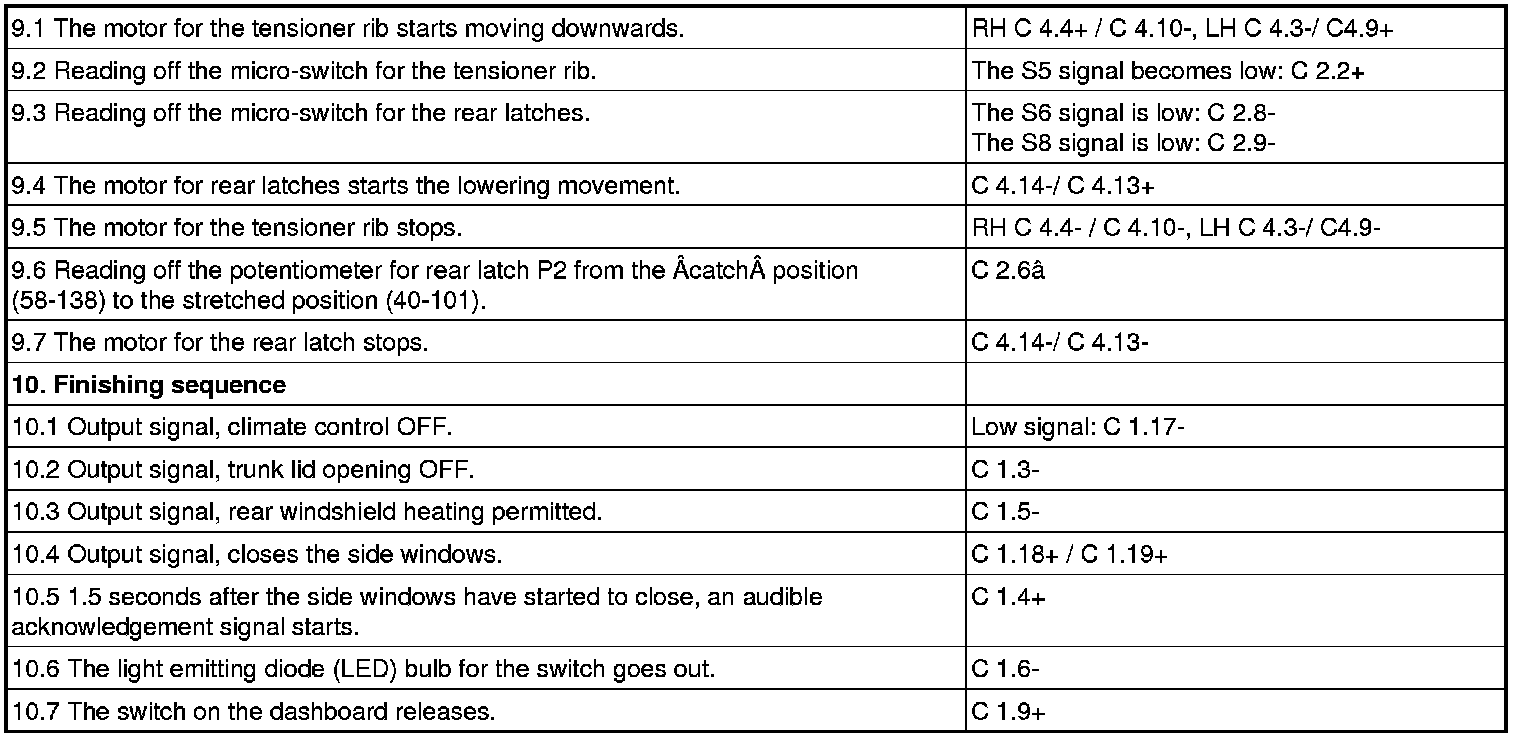

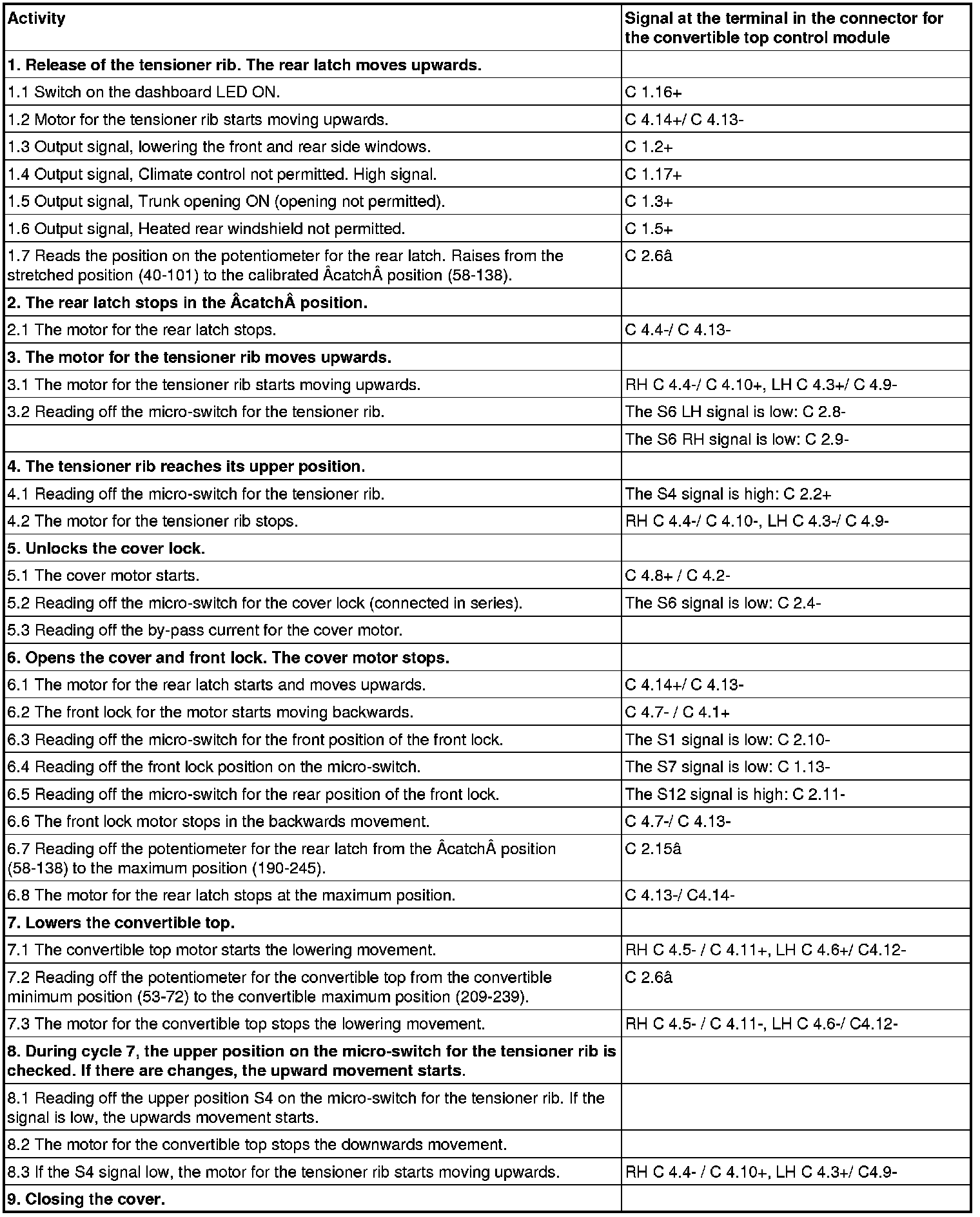

Convertible top opening sequence

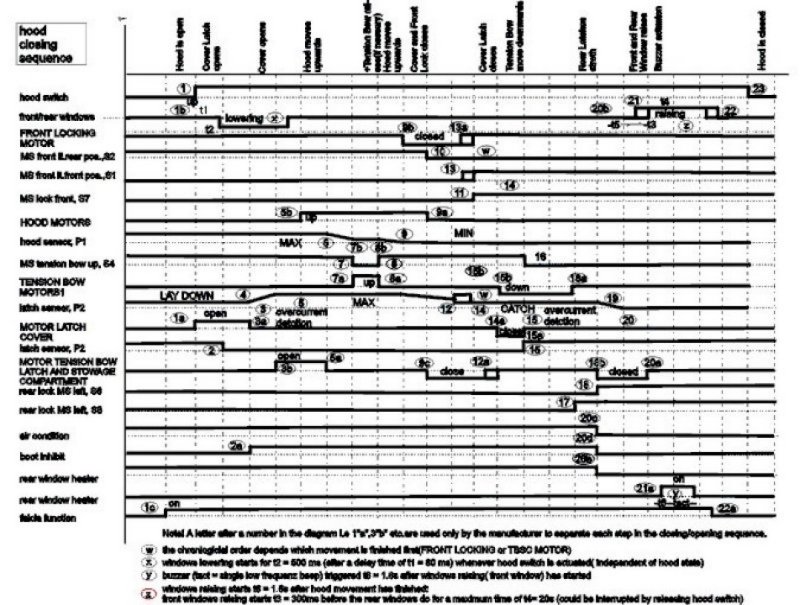

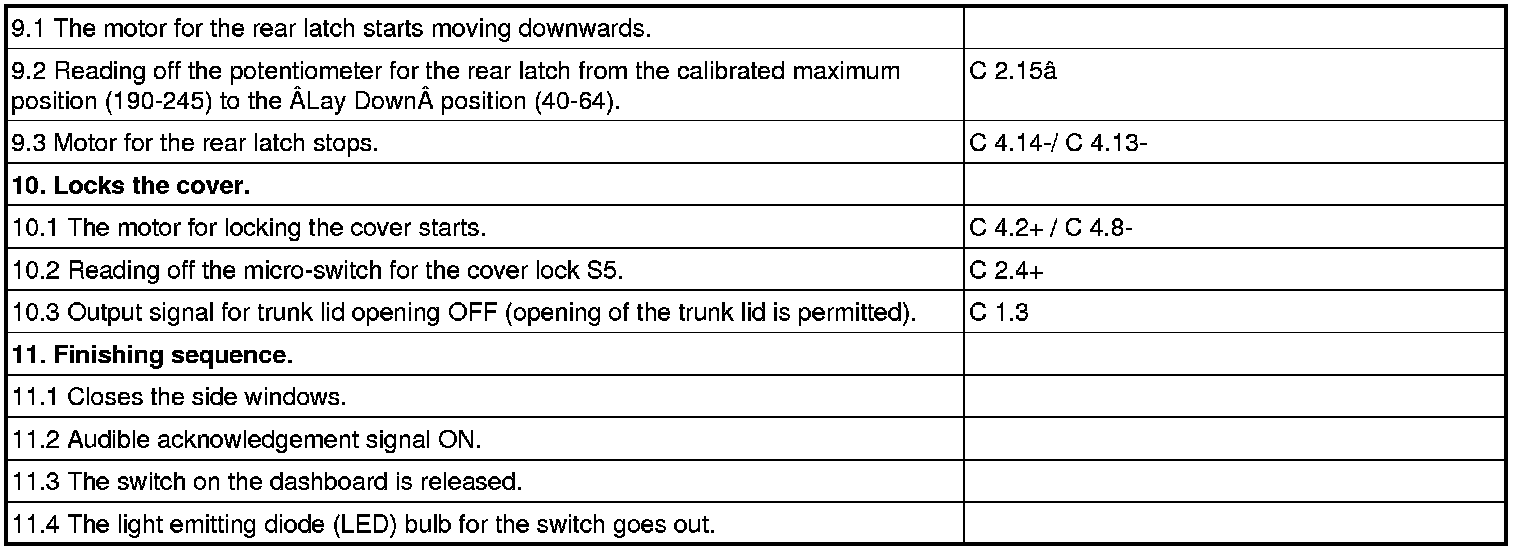

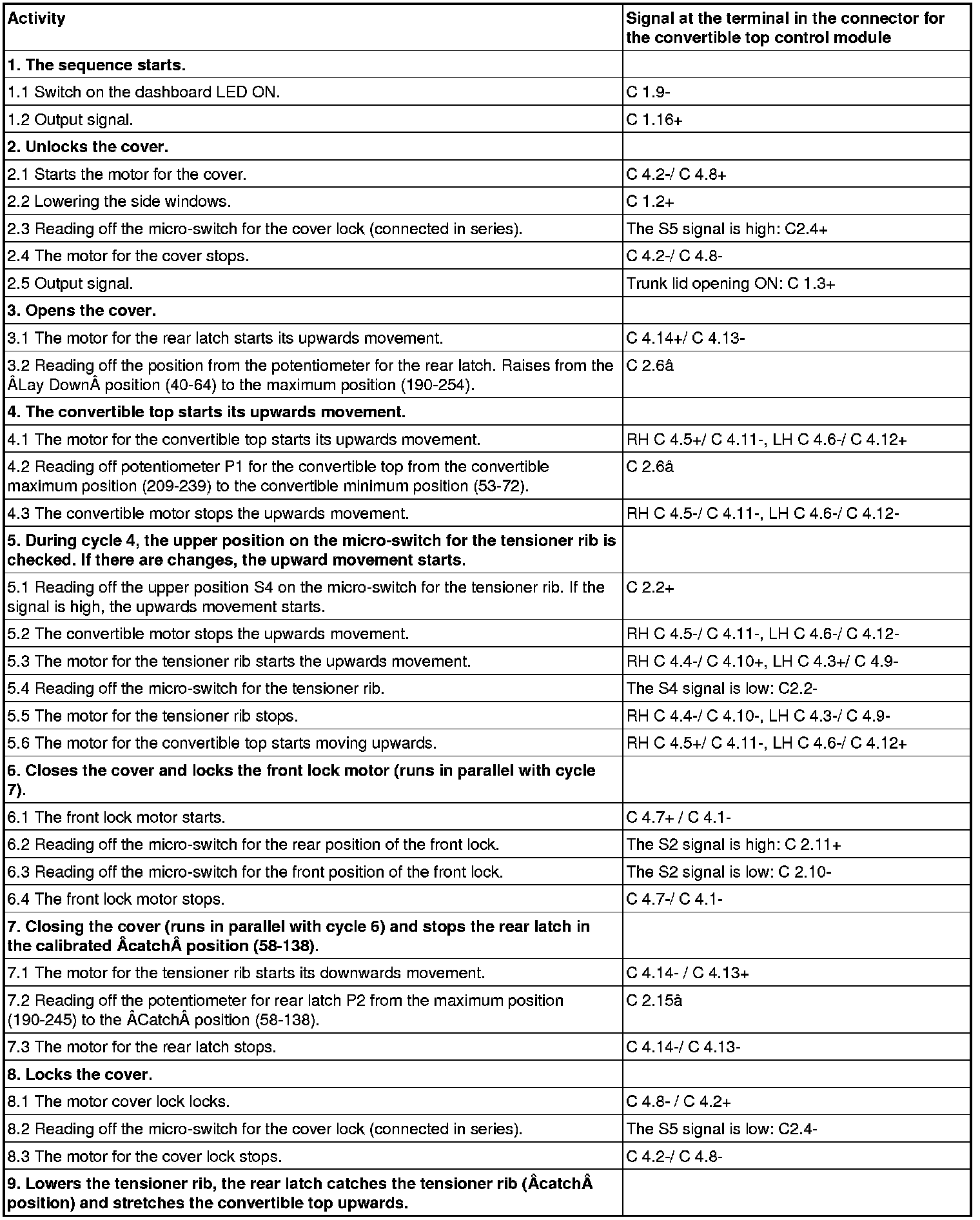

Convertible closing sequence
