Procedures

Noise Reduction - Center Console

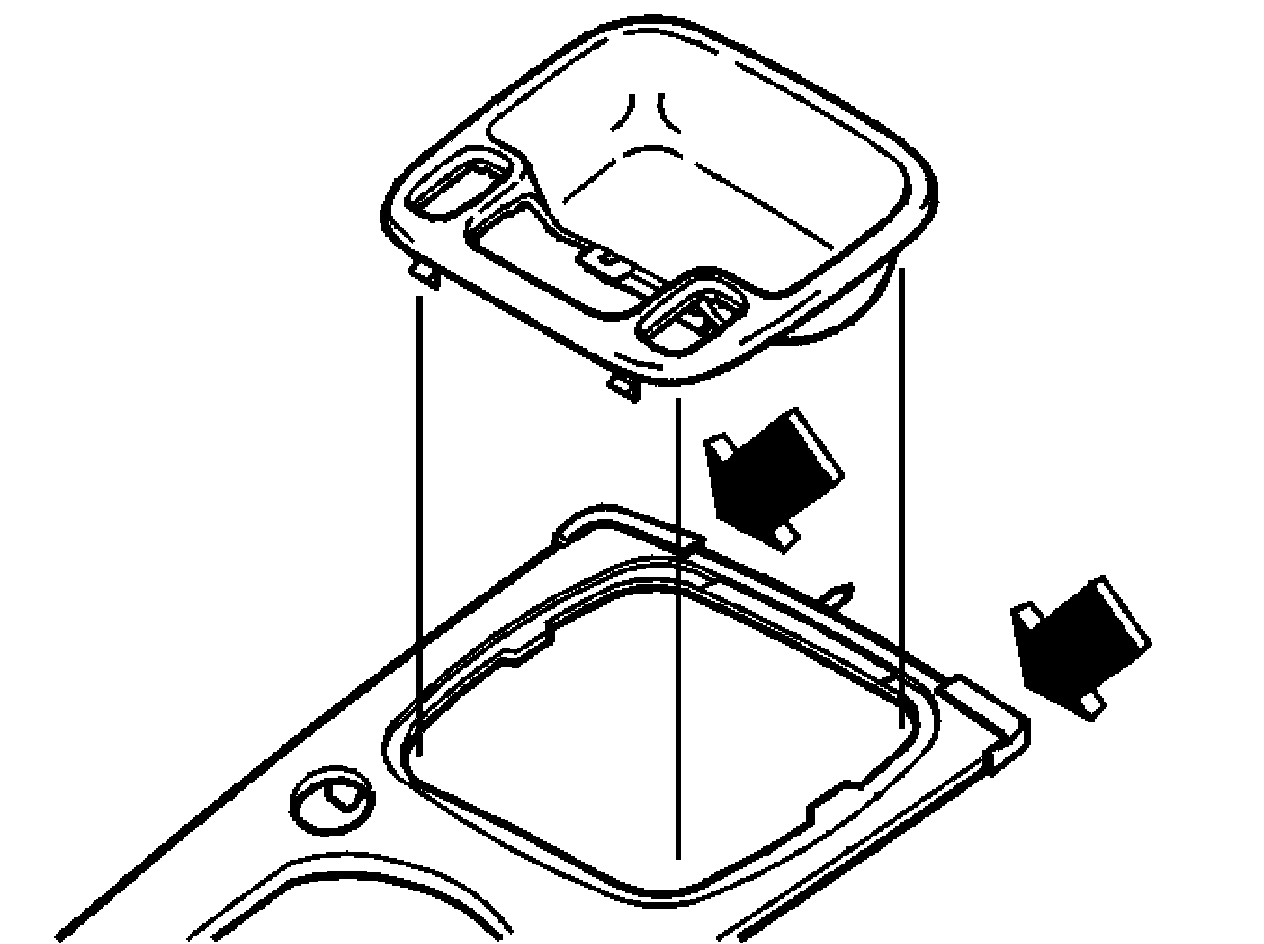

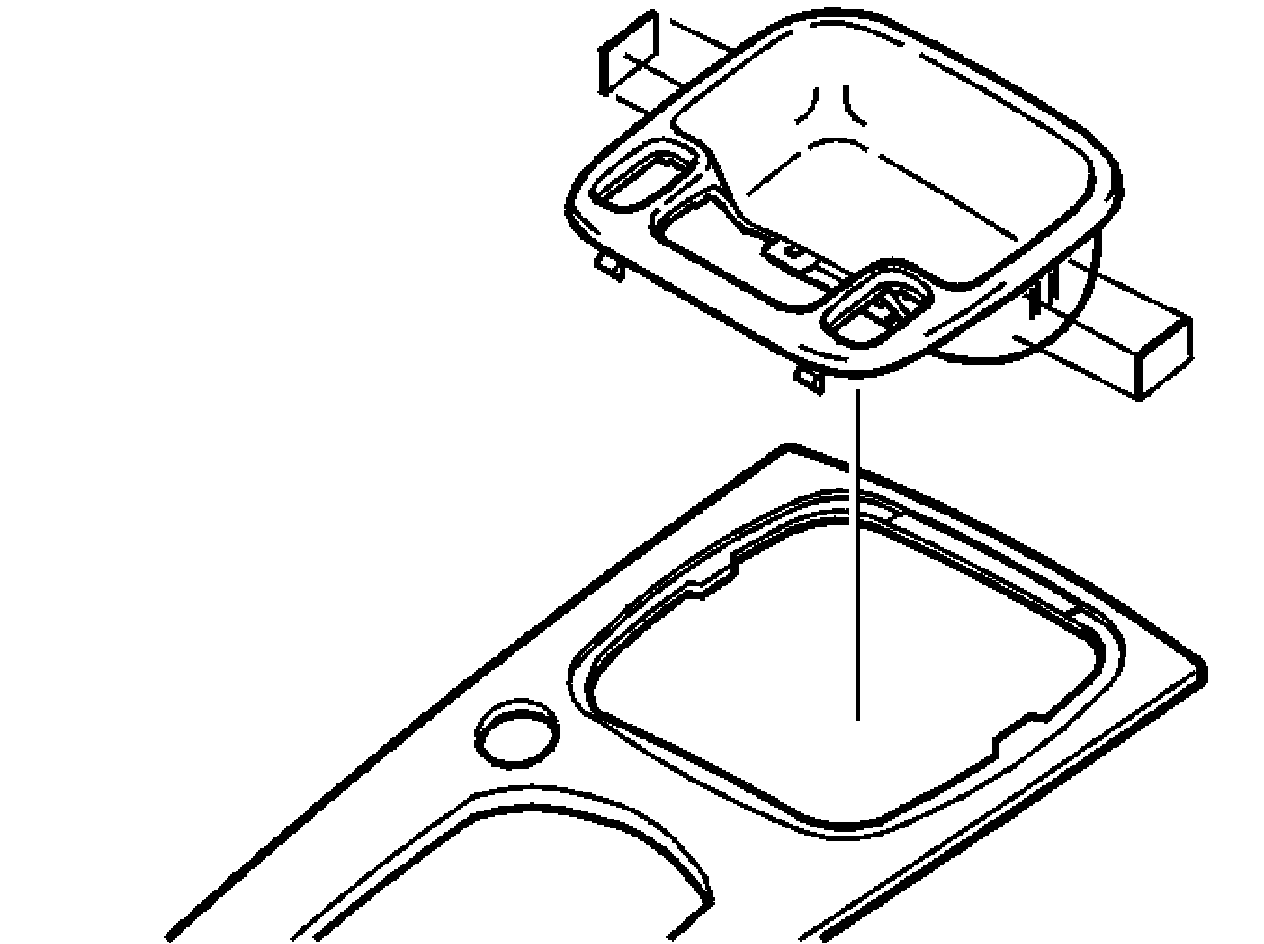

Noise from front cover in center console







Install tape, P/N 3537385-1, on the sides of the cover (on the ribs).

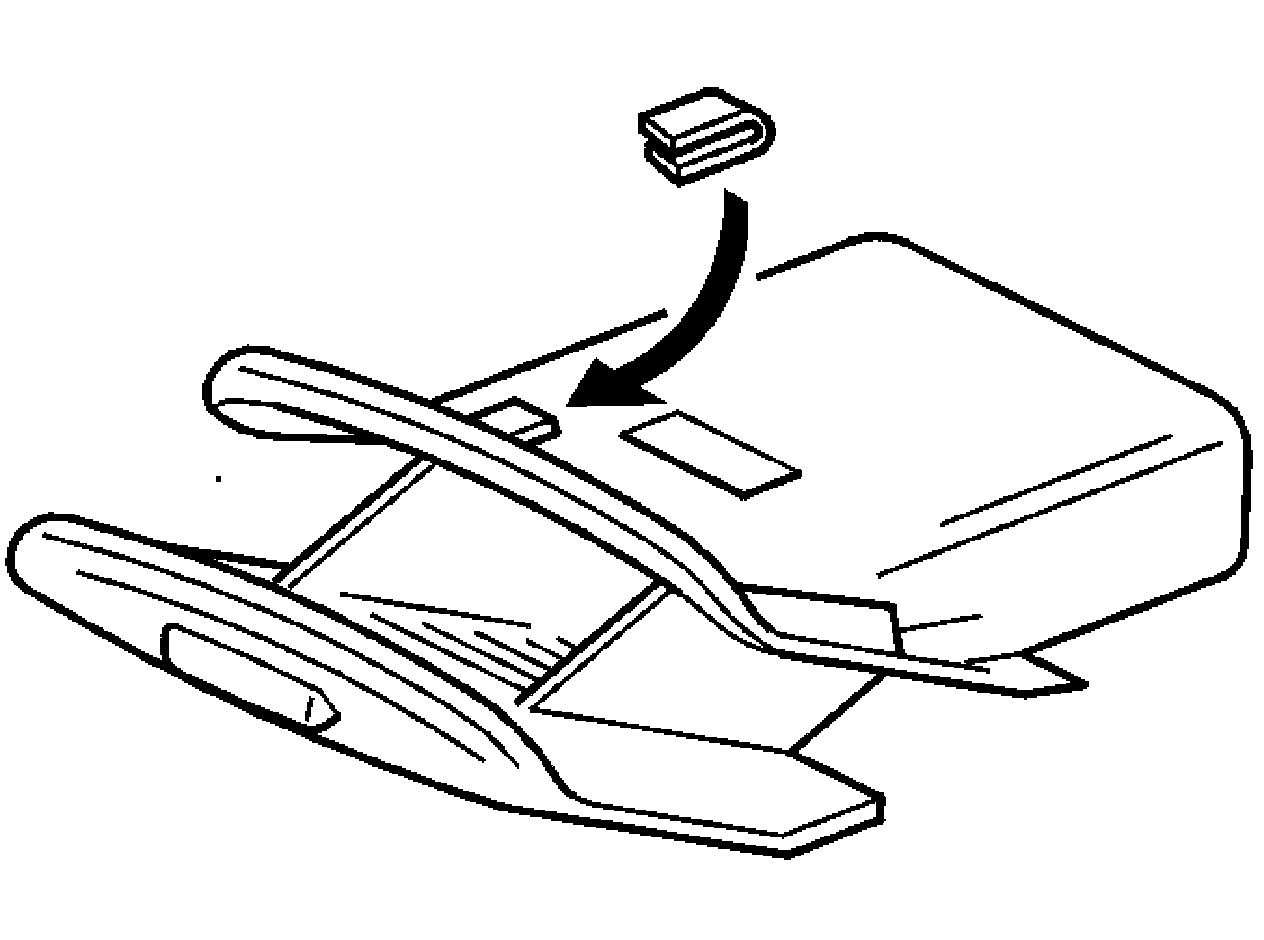

Noise from ashtray







Install tape, P/N 3537385-1 around the upper mounting on the ashtray holder.

Noise from cover panel-center console







Install tape, P/N 3537456-0, on the front section of the panel.

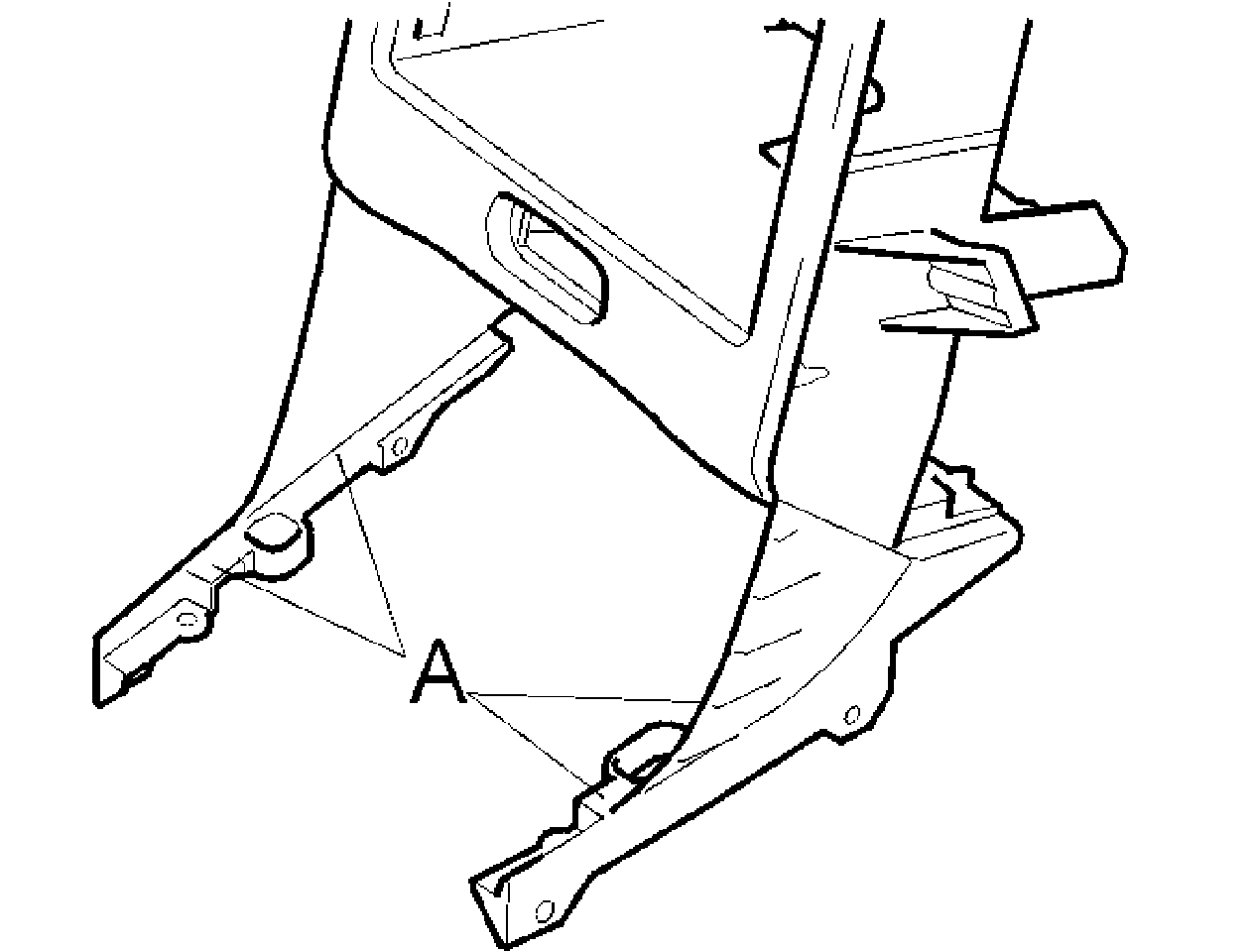

Noise from panel-dashboard







Check that there is tape on the side of the dashboard mating surface to the cover.

Tape missing, install a piece, P/N 3537456-0, in front of the clip cut out and a bit behind (on both sides).

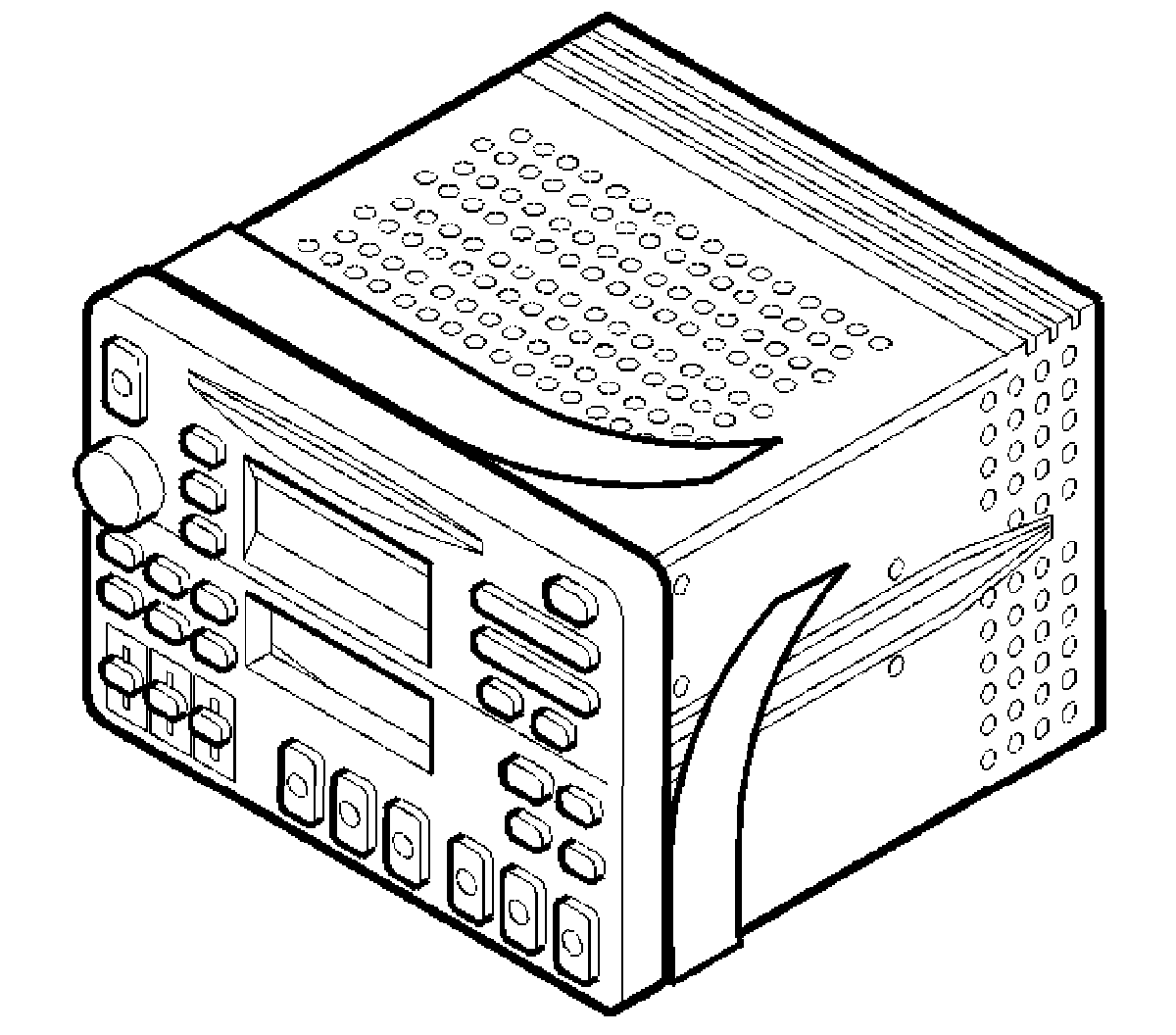

Noise from radio-radio tray







Install tape, P/N 1161410-4 around the radio (as illustrated).

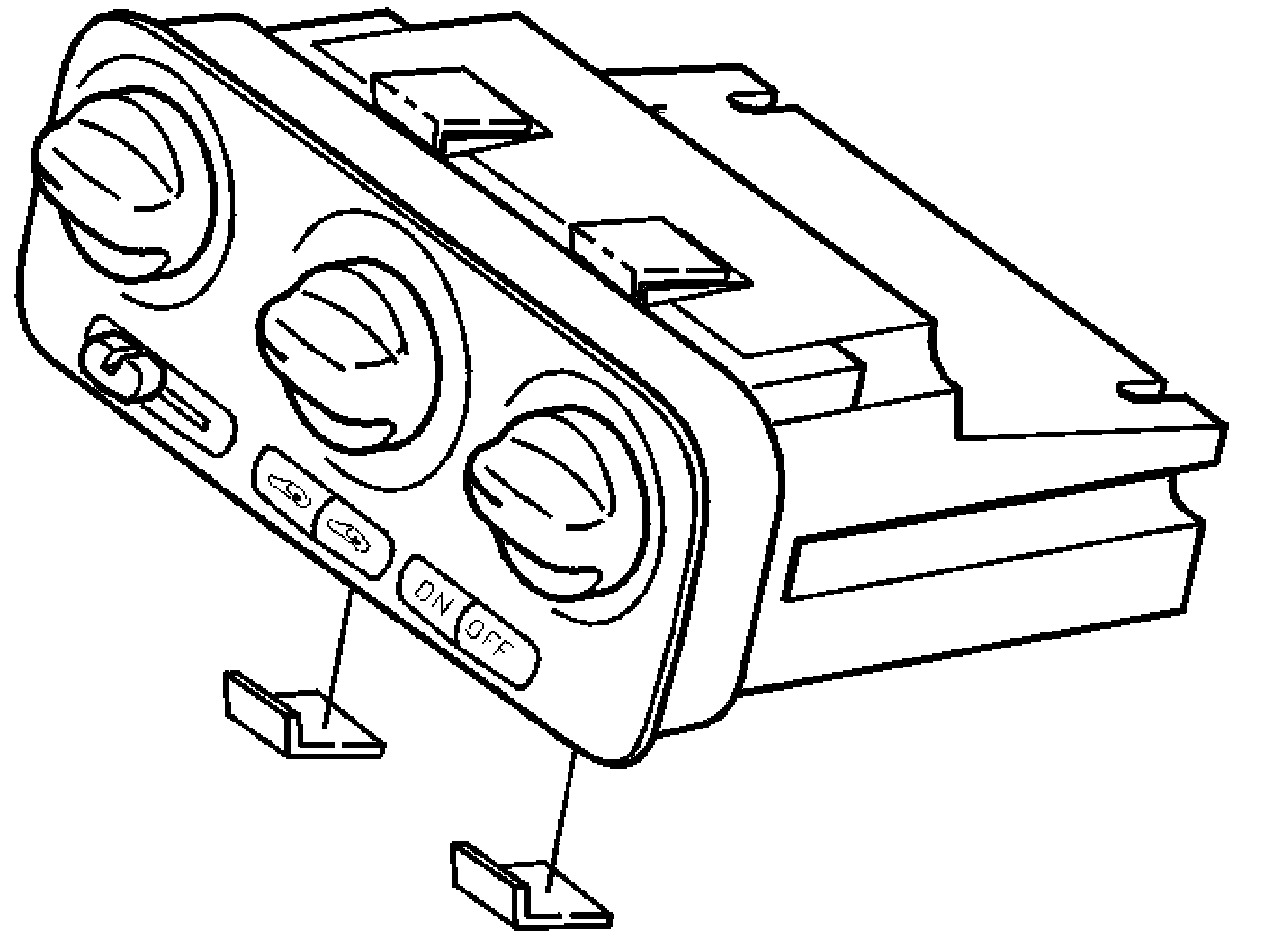

Noise from ECC control module clip-holder







Install tape, P/N 1161410-4, on the ECC control module clip (upper and lower sides).
