Hood Latch Release: Description and Operation

To Open the Hood:





- Pull the lever located under the left side of the dash to release the hood locks.

- Lift the hood slightly.

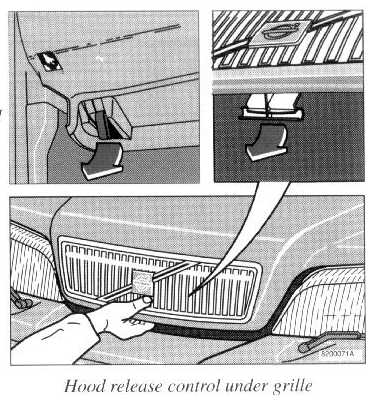

- Push the release control on the inside of the lower edge of the grille upward and lift the hood.

WARNING: Check that the hood locks properly when closed.
