Connecting The Breakout Box, Immobilizer

Connecting The Breakout Box, Immobilizer

Special Tools: 9813194, 9813190

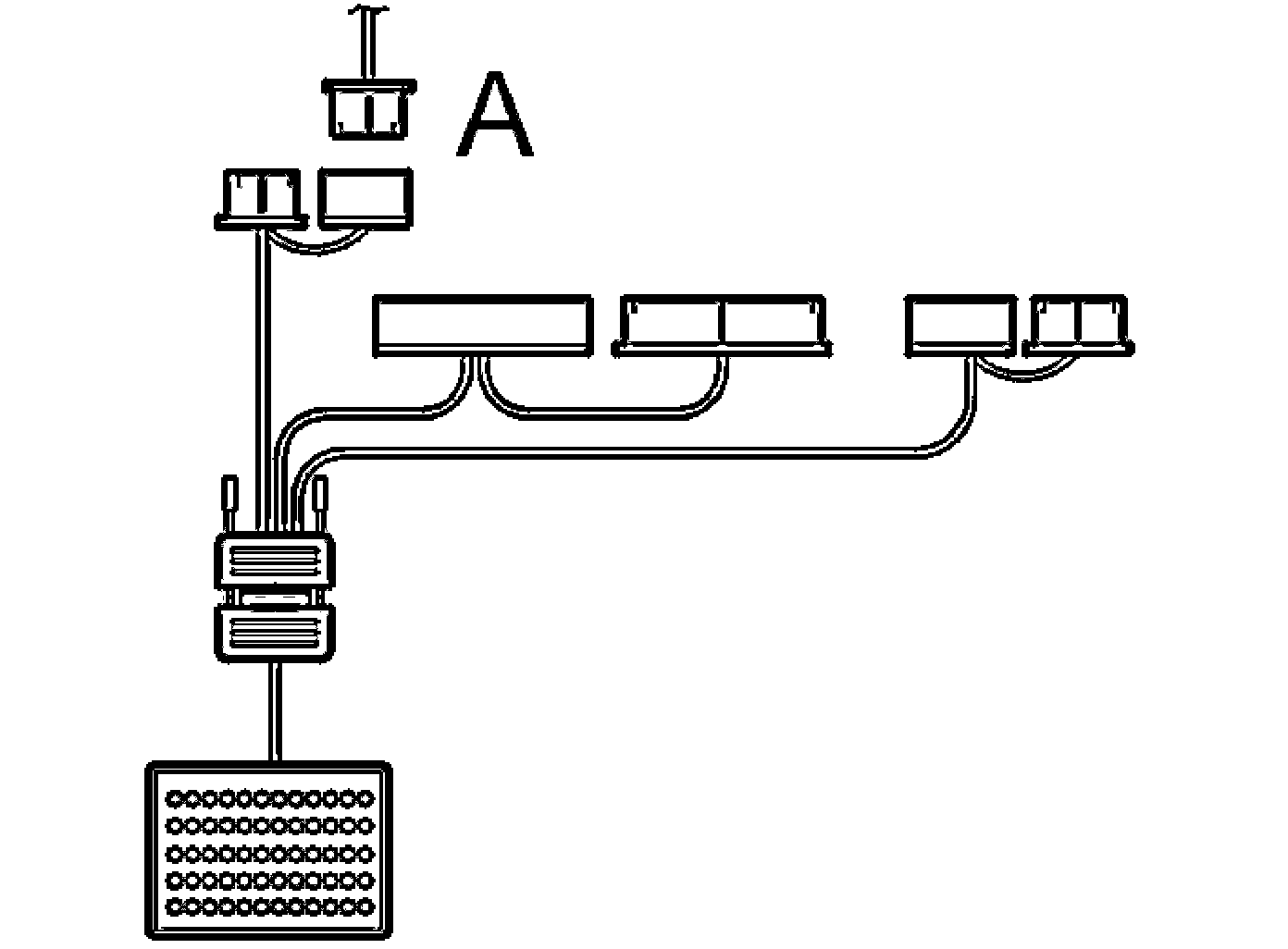

Connecting the breakout box to immobilizer connector (A)
- Ignition off
- Remove the control module from the bracket.
- Disconnect the connector (A) from the control module.
- Connect one of the 10 pin connectors on adapter 9813194 to the connector (A). Connect breakout box 9813190 to the adapter.
