Removal and Replacement

Replacing, CD-ROM player

Removing CD-ROM player




- Ignition off.

Remove:
- TMC receiver (FM receiver in Japan) according to Replacing TMC receiver Replacing TMC Receiver

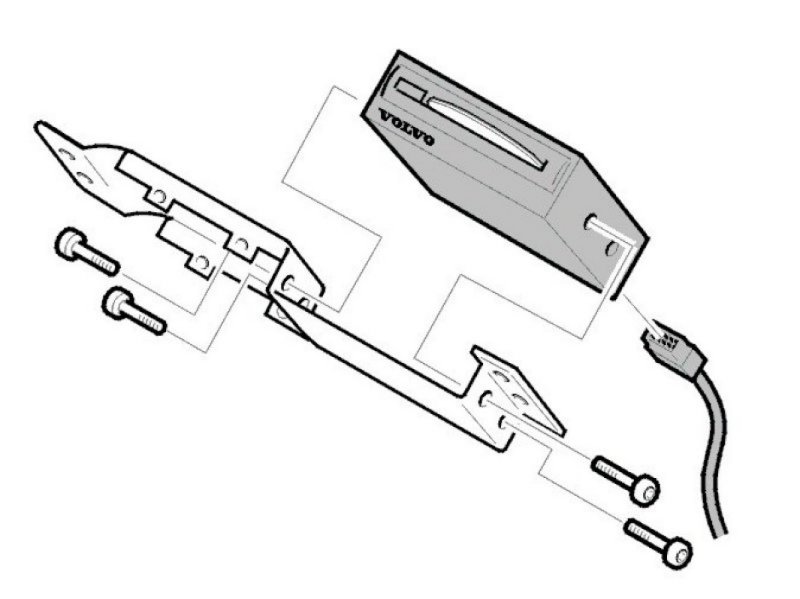

- CD-ROM player from the bracket.

Installing CD-ROM player

Install:
- CD-ROM player onto bracket.
- TMC receiver (FM receiver in Japan) in reverse order according to Replacing TMC receiver Replacing TMC Receiver.

Finishing
- Check that the system appears to be working normally.
- Check no diagnostic trouble codes (DTCs) have been stored during the repair.
