Navigation Display: Service and Repair

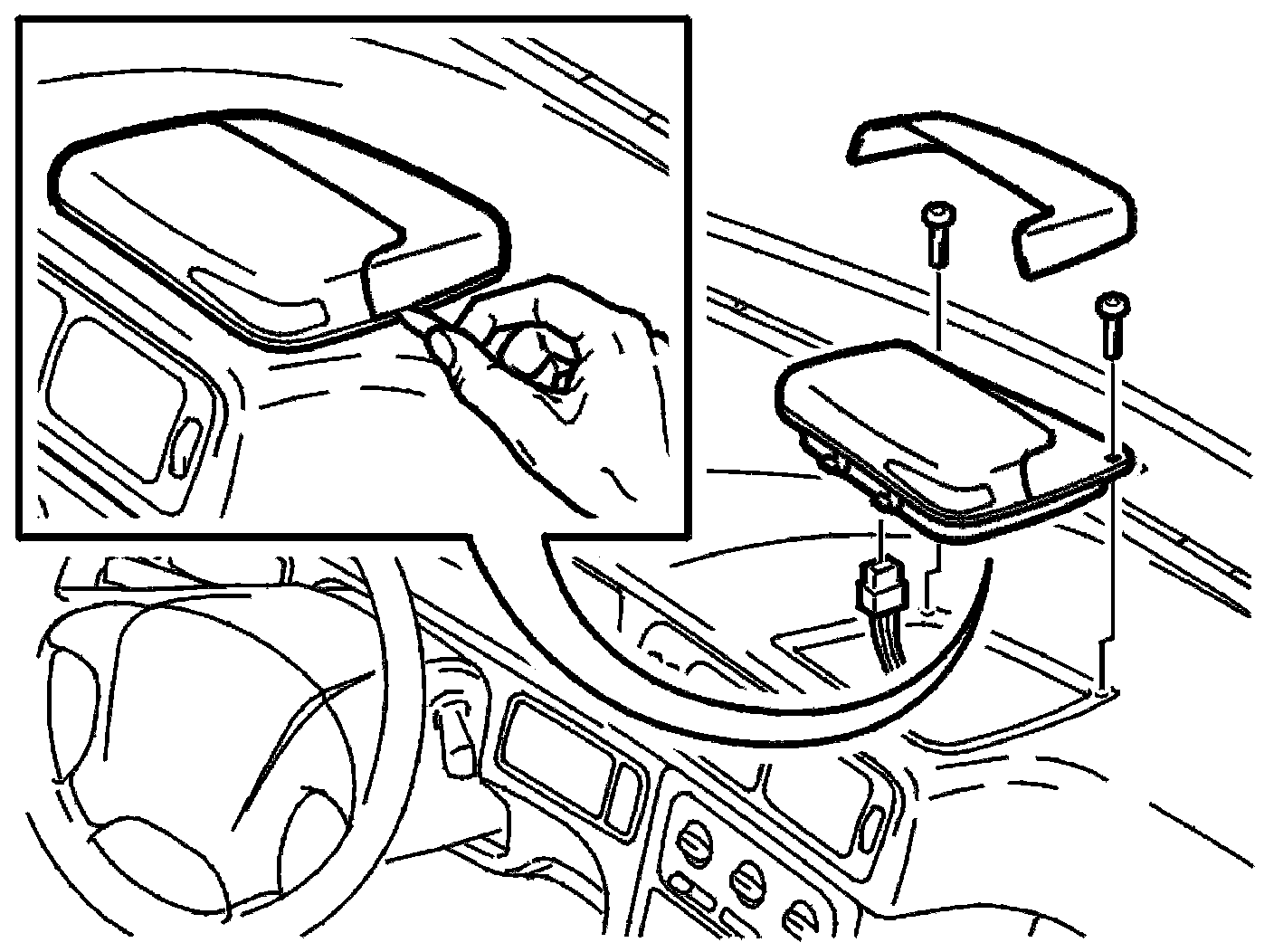

Replacing the display

Removing







- Ignition off.
- the cover with a straightening tool
- two screws
- the display by lifting the rear edge
- disconnect connector.

Installing
- In reverse order.

Finishing
- Check that the system appears to be working normally.
- Check no diagnostic trouble codes (DTCs) have been stored during the repair.
