Driver/Vehicle Information Display: Locations

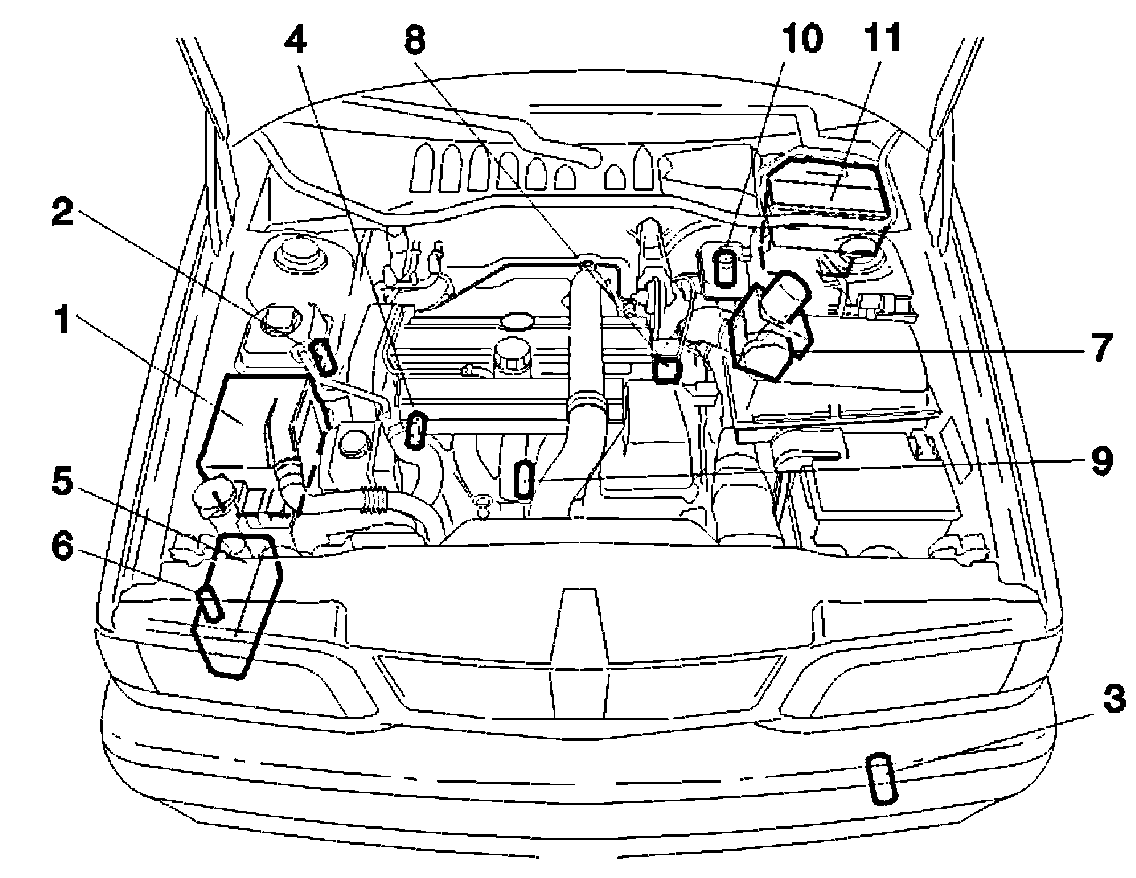

Location of components







1. Control module box
2. Engine coolant-level-sensor
3. Outside temperature sensor
4. Engine coolant temperature (ECT) sensor
5. Washer reservoir
6. Windshield washer reservoir level sensor
7. ABS
8. Engine speed (RPM) sensor
9. Oil pressure
10. Brake fluid-level-switch
11. Relay and fuse central engine compartment







1. Fuel level sensor
2. Rear bulb failure warning sensor
