Replacing the Siren





Replacing the Siren

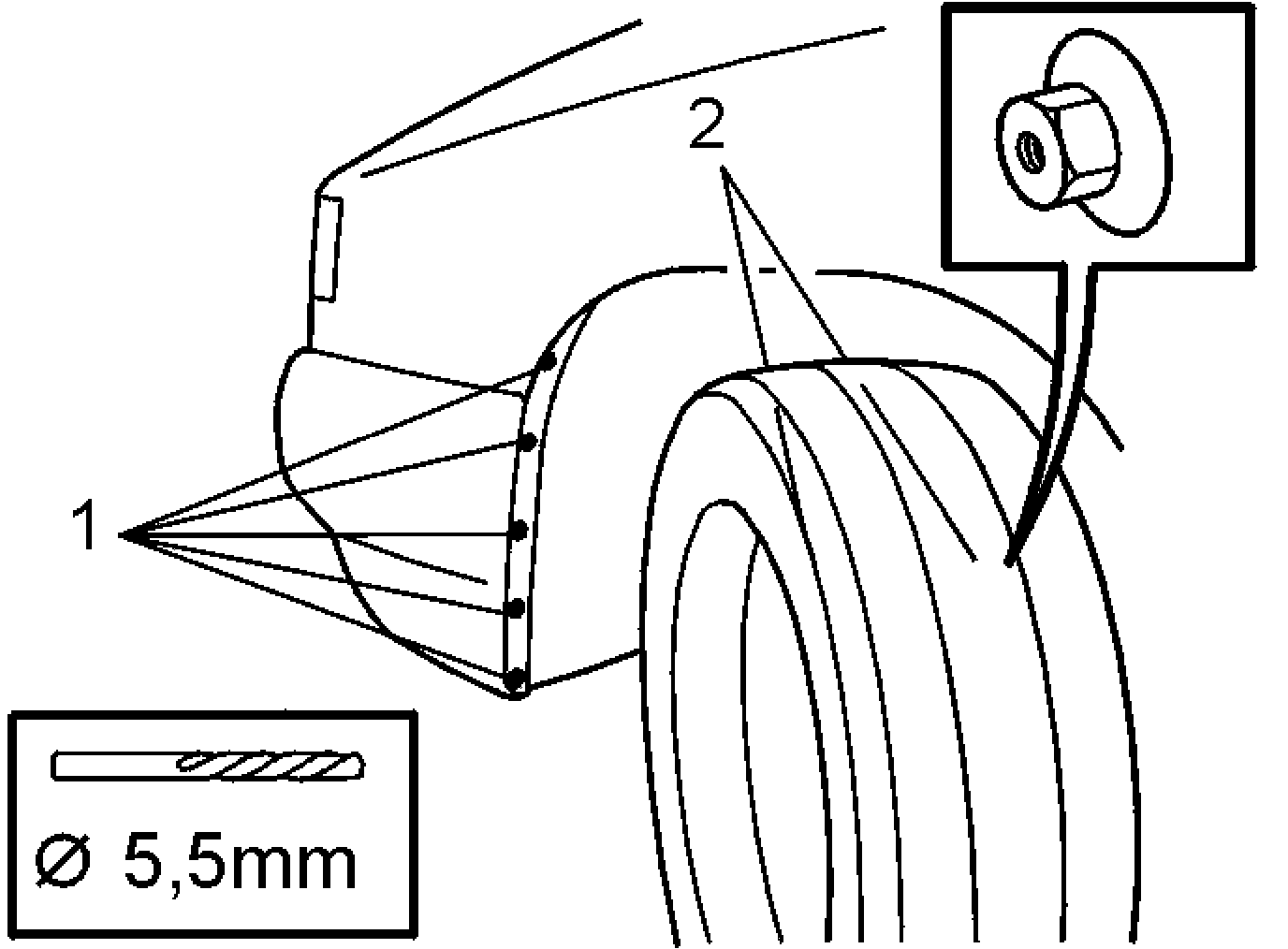

Removing:







- the rivets for the fender liner (3 mm blind rivets).
- the nuts for the fender liner.

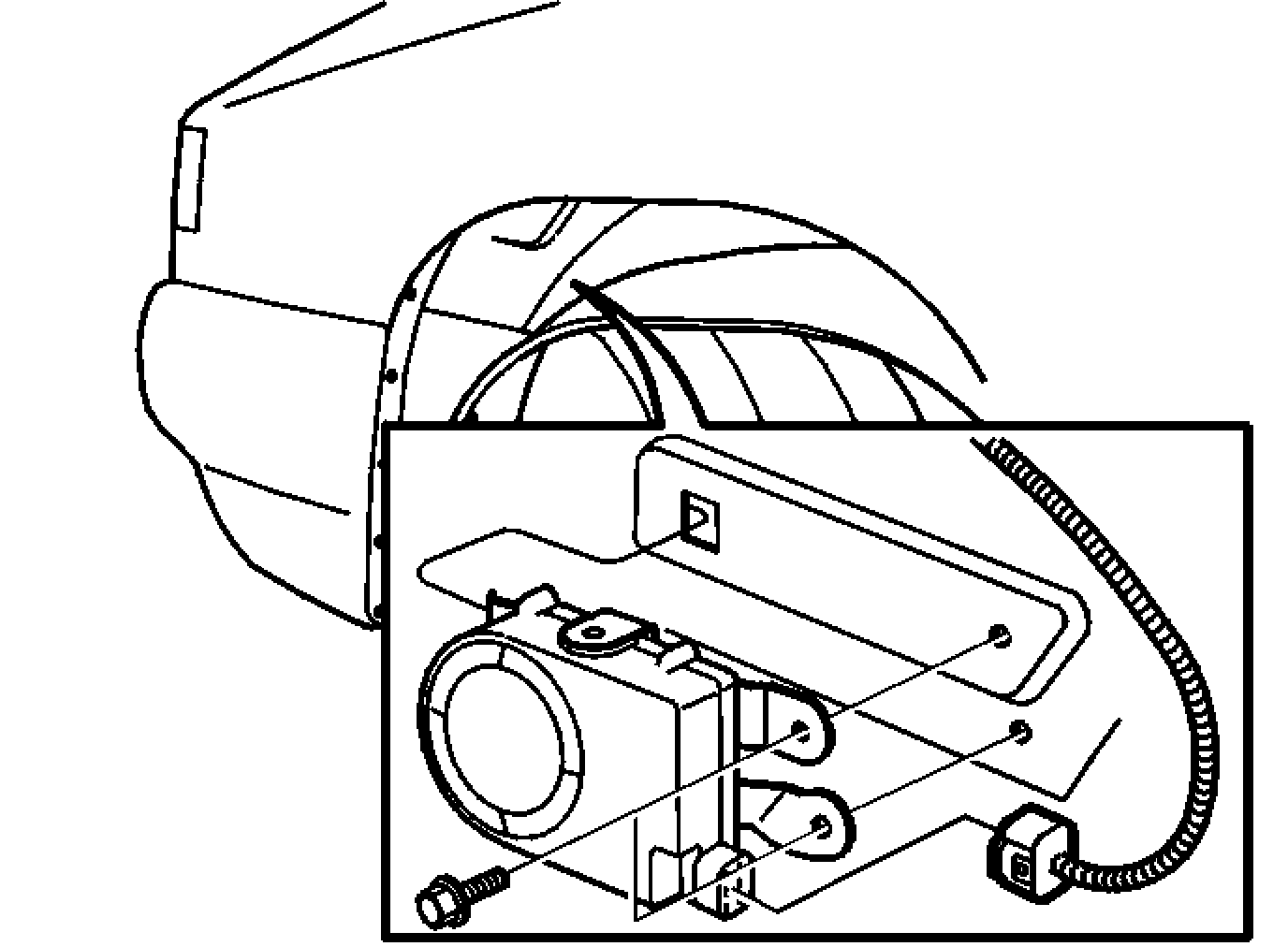

- the siren.

Installing
- In reverse order.
