Signal Missing. Intermittent Fault

Signal missing. Intermittent fault

Intermittent fault
Check the wiring between transmission control module (TCM) #A49 (#A49) and transmission connector B #3 and between control module #A67 (#B7) and between transmission connector B #6 for an intermittent open-circuit according to Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults.

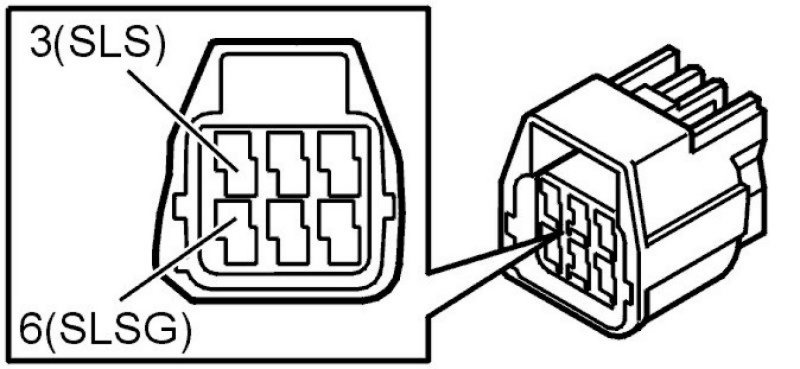

Hint: Check solenoid SLS by measuring the resistance between #3 and #6 on transmission connector B. The ohmmeter should read between 5 and 6 ohms (at 20°C).

Remedy as necessary.

Other information:
- To connect the breakout box, see Connecting the breakout box, B5234T9, B5244T7 Connecting The Breakout Box.
- To disconnect transmission connector B, see Replacement Of Control System Cable Harness With Oil Temperature Sensor.
- For information about signals, see Signal description. Transmission control module (TCM), AW55-50/51SN Signal Description AW50-42.









Select Continue when the fault has been remedied.

Continue - Fault-tracing information

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
If the fault is intermittent, do not verify fault-tracing if the fault does not recur.
It is possible to view the information again, or leave fault-tracing for this diagnostic trouble code (DTC).

Do you want to view the information again?

Yes - Attempt New Test

No - FAULT FOUND

------------------------

Attempt New Test - Intermittent fault

FAULT FOUND - DONE

-------------------------------------------------
