Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information

Condition

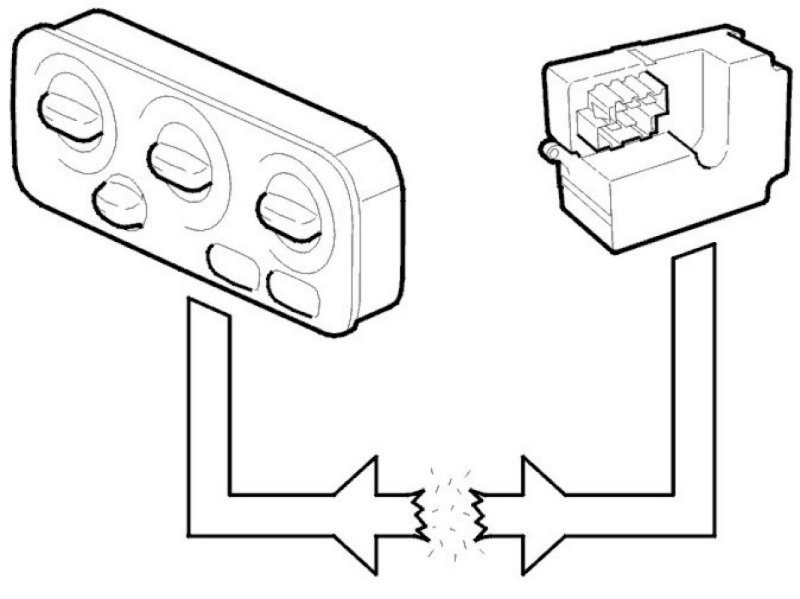

When the self-adjusting function is activated the control module checks that the damper motor has adjusted its limit positions fully. If the control module registers an incomplete self-adjustment procedure the diagnostic trouble code (DTC) 5-1-1 is stored.

Note! The control module automatically performs a self-adjustment when it is connected to the car or when battery voltage has been disconnected from the control module (battery disconnected for more than 30 seconds for example).

Substitute value
None

Possible source
- One of the damper motors is blocked.
- One of the damper motors is incorrectly installed.

Fault symptom[s]
- The REC bottom orange indicator LED flashes once when the ignition is turned on.
