Convertible Top Control Unit (CCU)





Part 1:

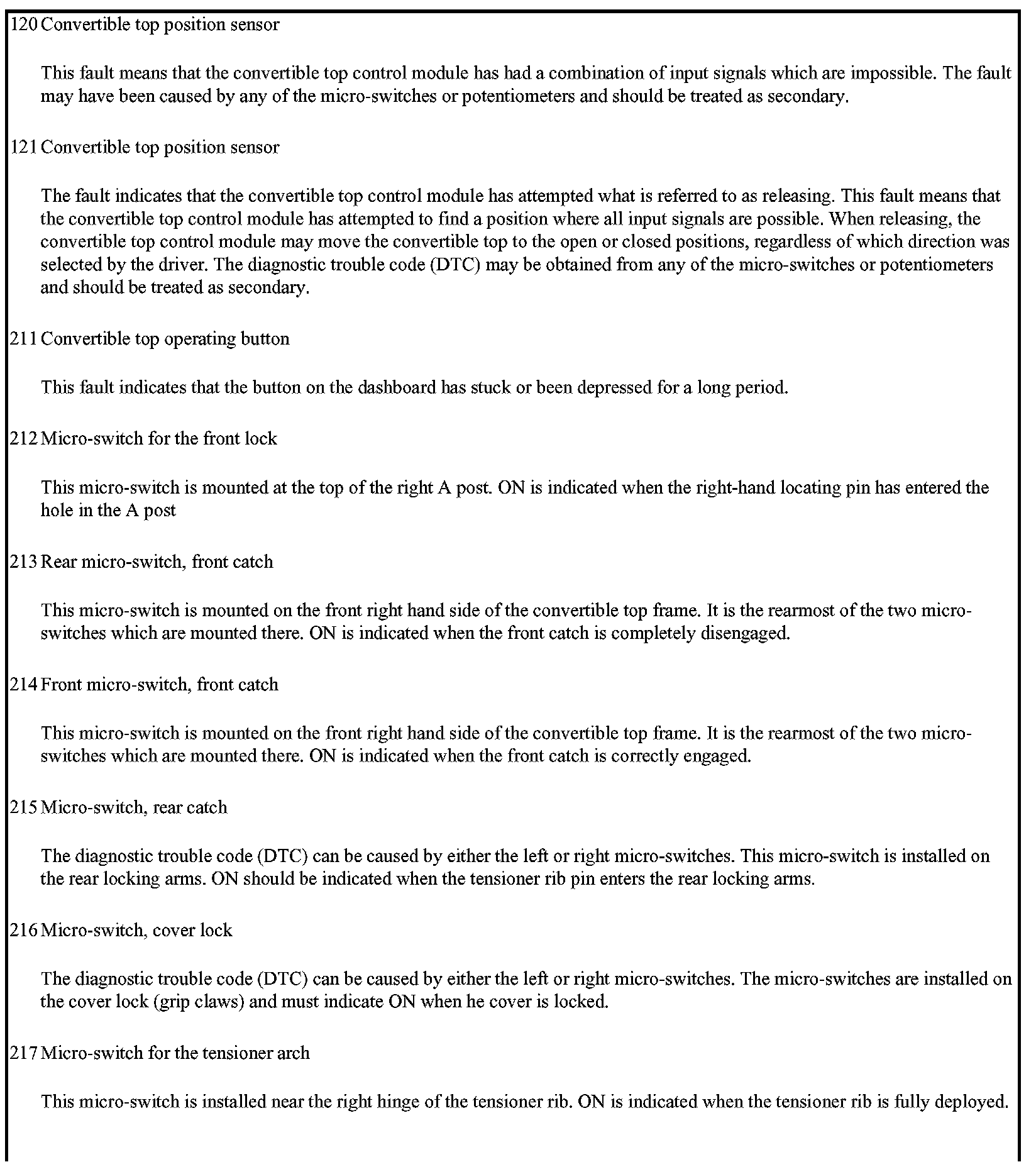

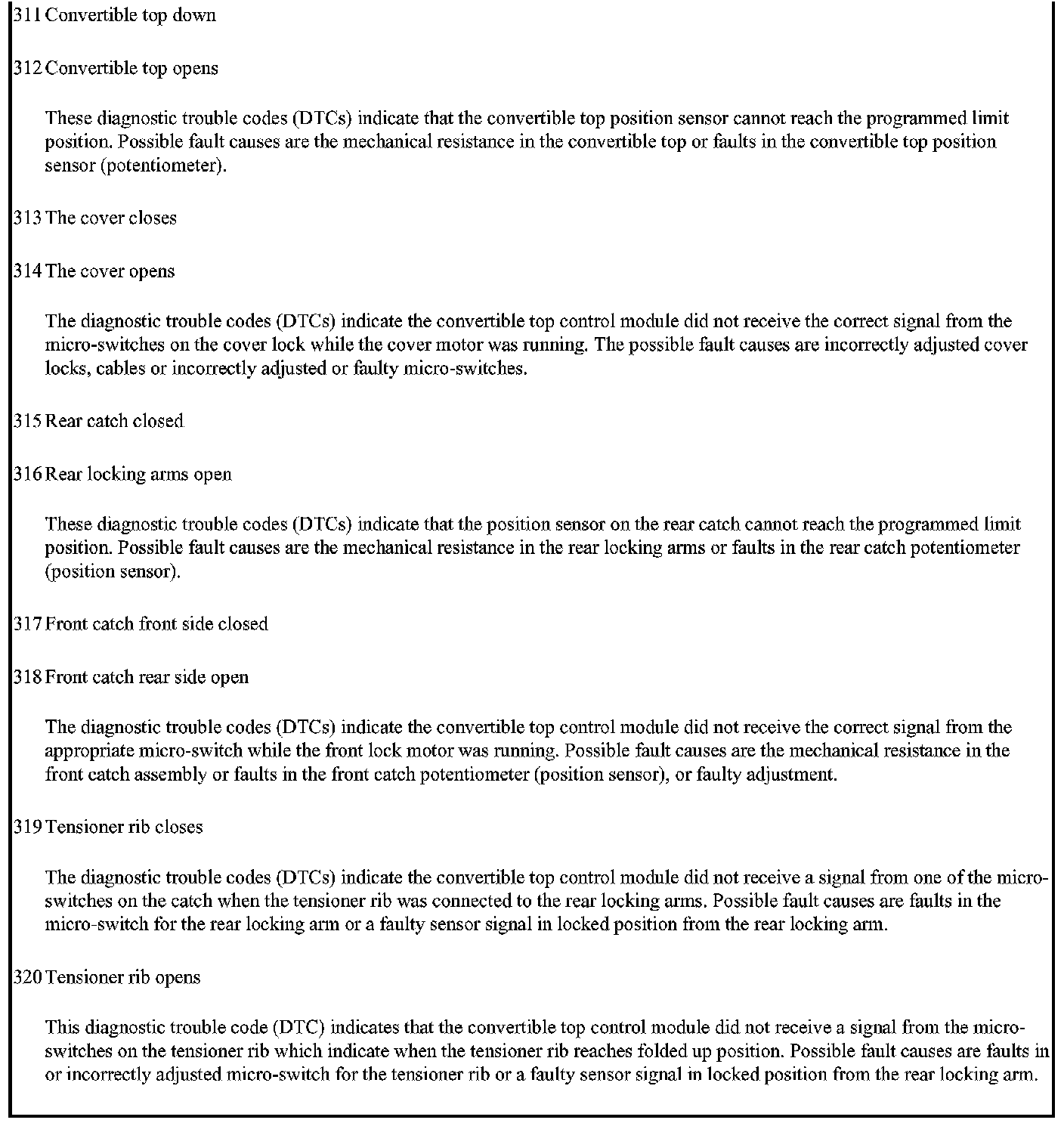

The provided is a list of the most frequent DTCs and the most common causes of DTCs. This is only intended as a guide and does not mean that fault-tracing is not to be carried out.
