Adjusting the Window Front-Rear
ADJUSTING THE WINDOW FRONT-REAR, POWER WINDOW, FRONT AND REAR DOORS- Lower the window so that the arm of the lift mechanism can be disengaged from the window

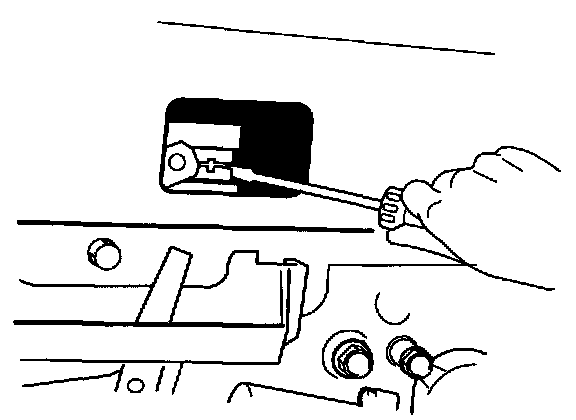

- Adjust window by lifting the catch on the arm mounting. Use a screwdriver.
- Move the mounting to the next position along the rail. Press arm into place.
- If further adjustment is required, drill new 2 mm holes in the rail.
- A correctly adjusted window should not stick against the door arches.
