Chassis Limit Up to 465398

Sealing ring crown wheel shaft lefthand side, replacing

Special tools:
999 7086
999 7087

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information is always correct.

Preparatory work
- Remove the bevel gear.

Removing the sealing ring
- Position the bevel gear on a workbench. Support the gear using a wooden block.

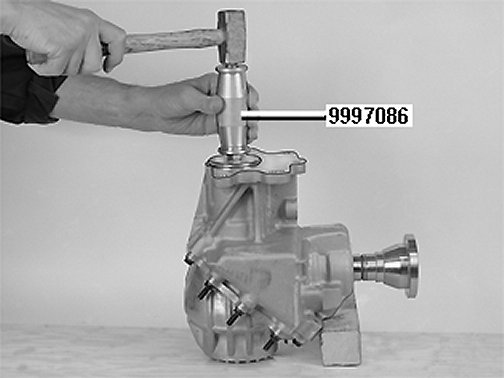

- Use extractor 999 7086. Knock the seal towards the housing using the extractor sleeve.
- Remove the seal using the impact driver handle of the extractor.
- Check thoroughly that no seal residue remains.




Draining the bevel gear oil

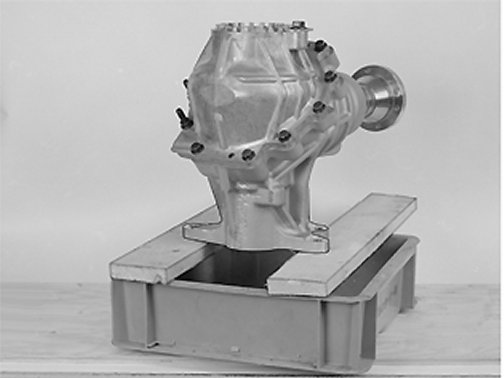

- Position the bevel gear over a container.
- Remove the level plug. Allow the oil to run out through the bearing.
- Wipe away spilt oil from the sealing ring seat on the bevel gear. Use a lint-free rag.

Installation
- Installing the sealing ring

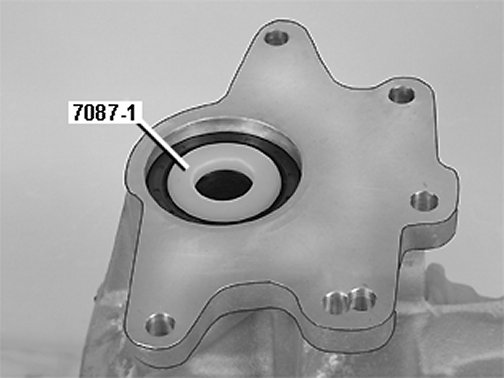

- Install sleeve 7087-1 in the end of the shaft.
- Lubricate the lip of the new sealing ring. Use grease 116 1241-3 (80g). Position the seal on the sleeve.

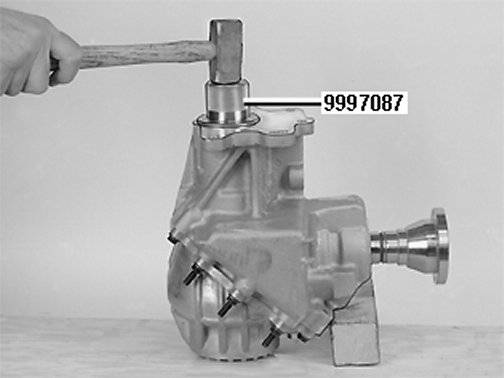

- Tap the seal into the bevel gear. Use drift 999 7087 . Ensure that the tool goes towards the bevel gear housing.
- Check that sleeve 7087-1 is removed with the tool.

Finishing
- Install the bevel gear.
- Fill the bevel gear with new oil.
