Home >> Volvo >> 2000 >> S70 AWD L5-2.4L Turbo VIN 56 B5244T >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine Technical Specifications

Engine Technical Specifications

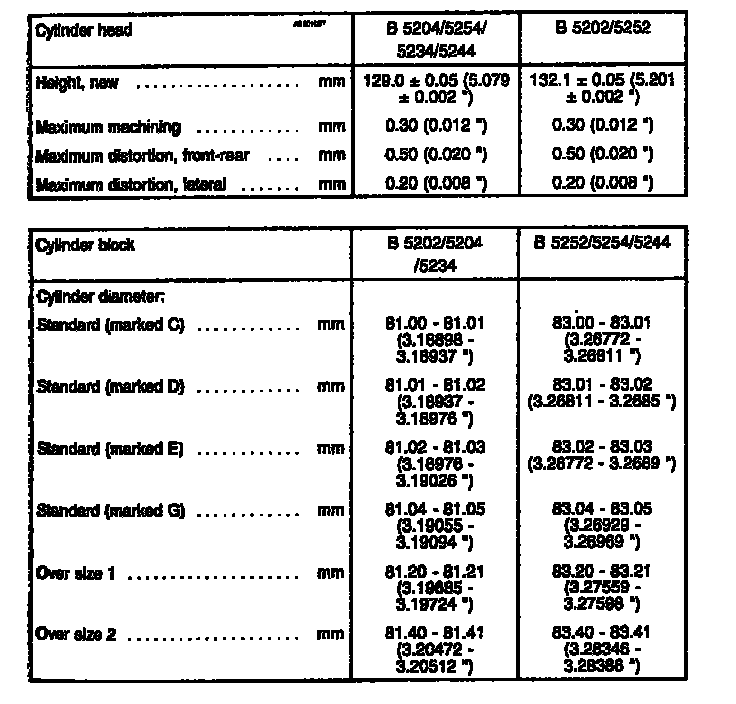

S70/V70 Engine Mechanical Data:

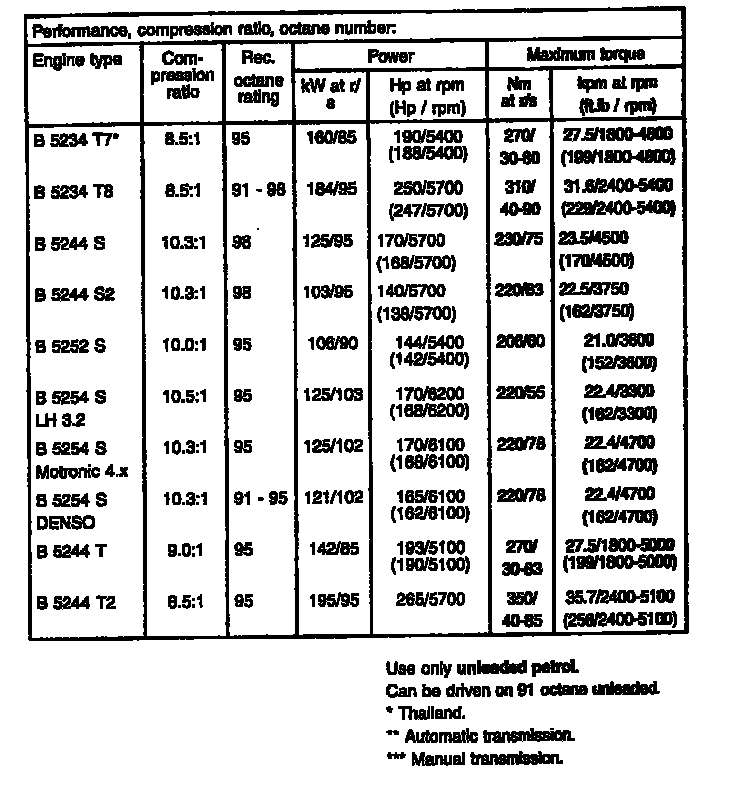

S70/V70 Engine Mechanical Cont.:

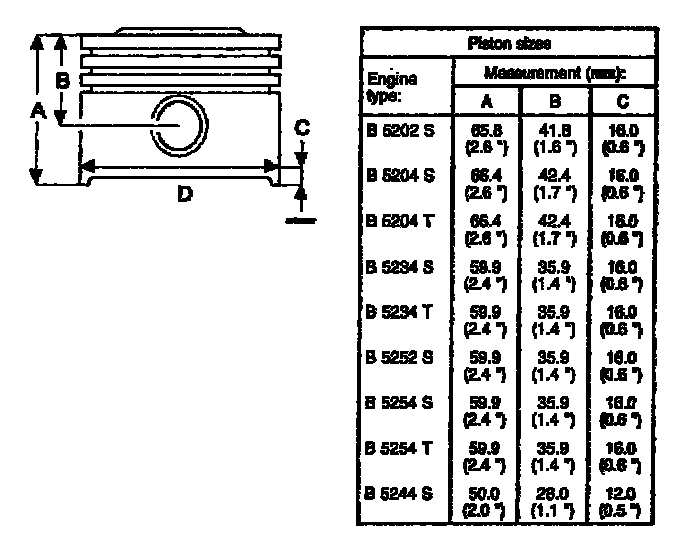

S70/V70 Engine Mechanical Cont.:

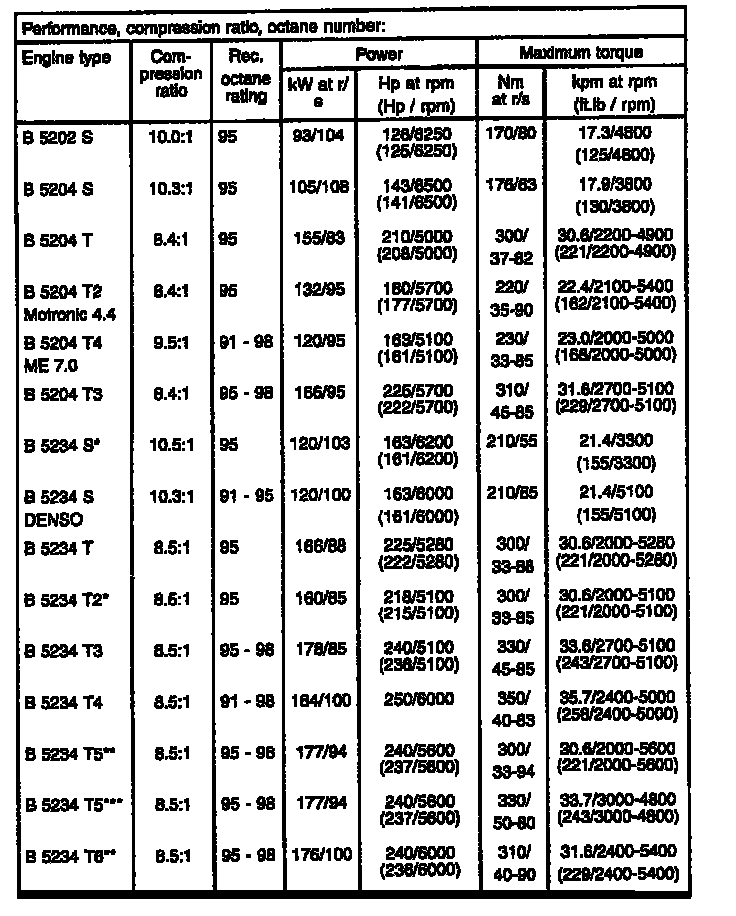

S70/V70 Engine Mechanical Cont.:

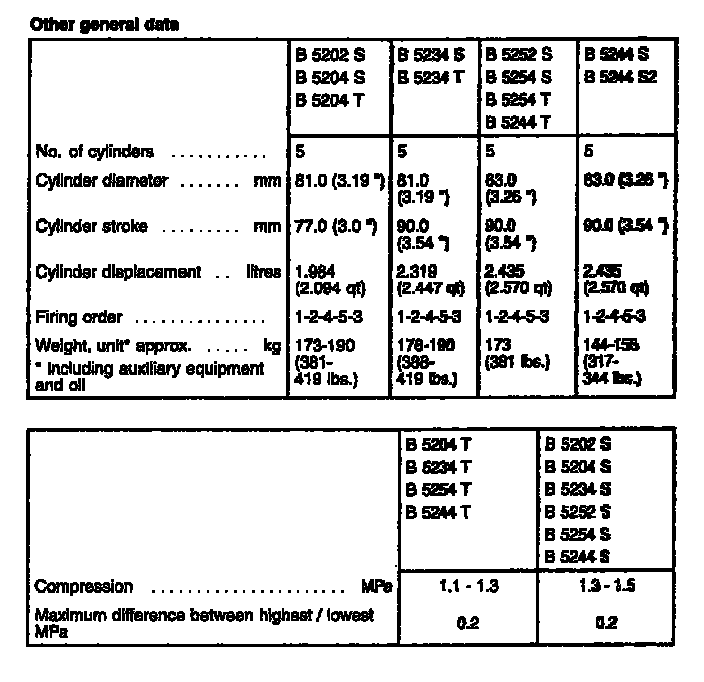

S70/V70 Engine Mechanical Cont.:

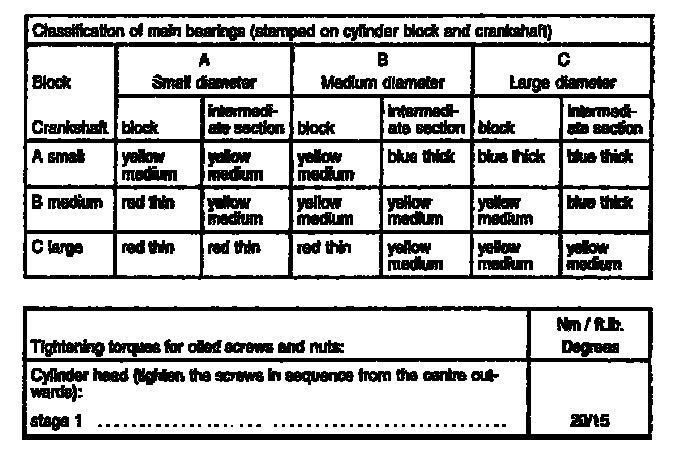

S70/V70 Engine Mechanical Cont.:
