Home >> Volvo >> 2000 >> S70 AWD L5-2.4L Turbo VIN 56 B5244T >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Head Assembly >> System Specifications >> Tightening Torque

Tightening Torque

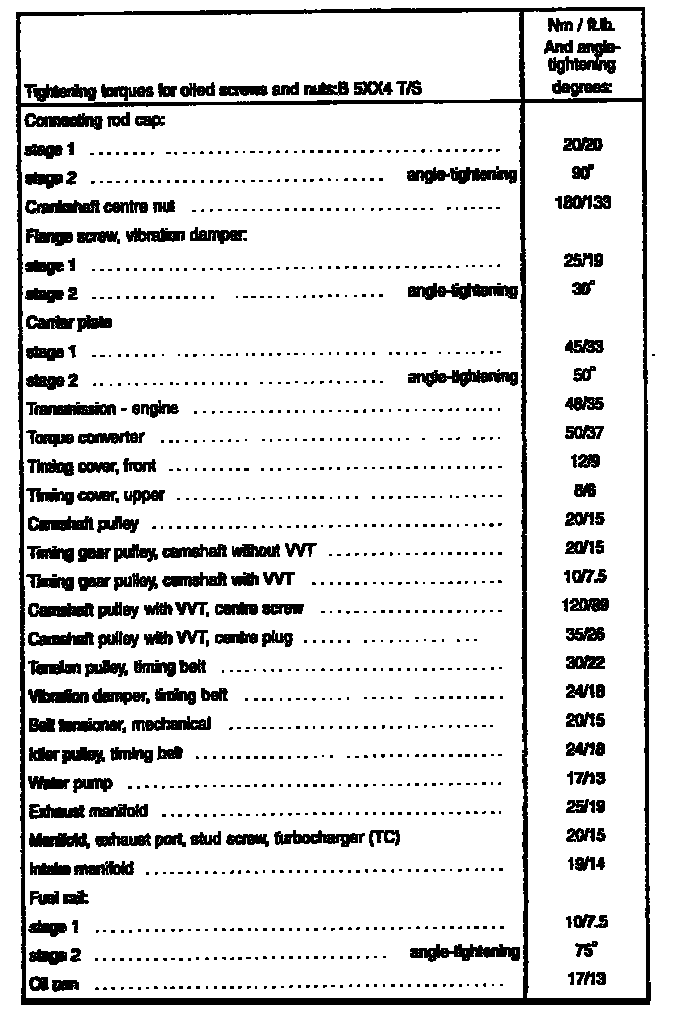

C70 Engine Mechanical Torque:

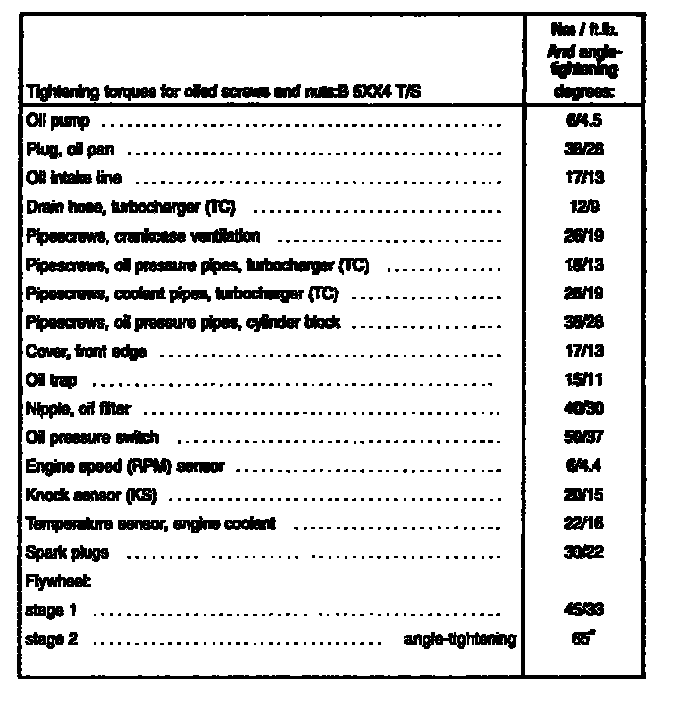

C70 Engine Torque Cont.:

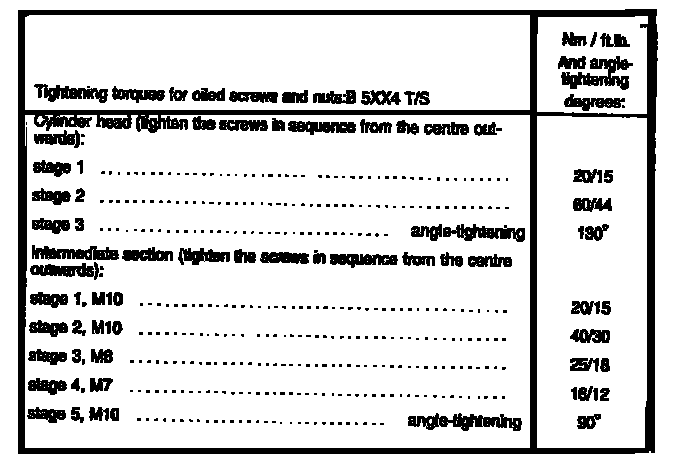

C70 Engine Torque Cont.:
