Alignment

Alignment Specs


Front Axle

Caster 3.35°±1.0°
Max Deviation 1.0°

Camber 0.0°±1.0°
Max Deviation 0.2°±0.7°

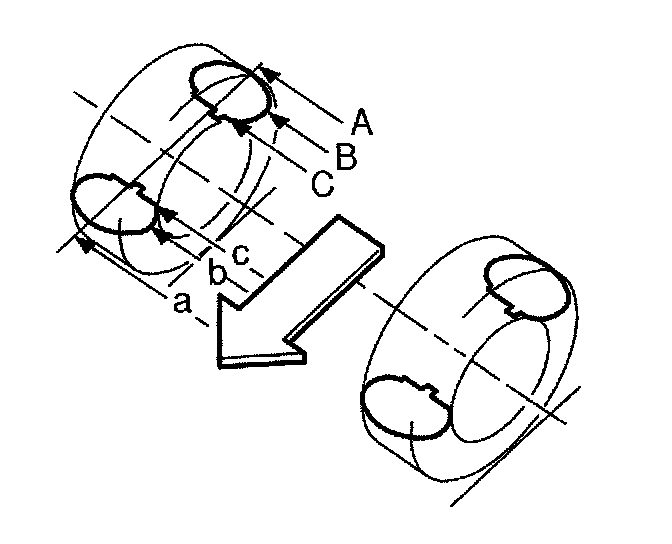

Toe-in

Toe-in:

15" Wheels
A-a 3.6 ± 1.0mm (0.14" ± 0.04")
B-b 2.9 ± 0.9mm (0.11" ± 0.04")
C-c 2.4 ± 0.7mm (0.09" ± 0.3")

16" Wheels
A-a 3.6 ± 1.0mm (0.14" ± 0.04")
B-b 2.9 ± 0.9mm (0.11" ± 0.04")
C-c 2.5 ± 0.8mm (0.10" ± 0.3")


17" Wheels
A-a 3.6 ± 1.0mm (0.14" ± 0.04")
B-b 2.9 ± 0.9mm (0.11" ± 0.04")
C-c 2.7 ± 0.8mm (0.11" ± 0.3")





Rear Axle

Camber -0.25°±0.75°
Toe-in 0.1°±0.2°
Thrust Angle 0°±0.25°
