Checking Bulb Holder

Checking Bulb Holder

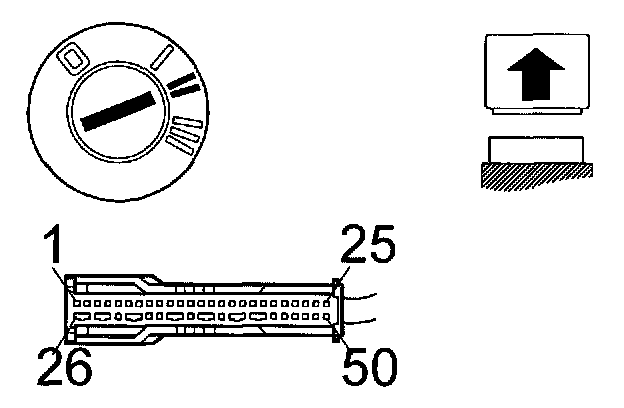

- Ignition off.
- Disconnect the control module.
- Ignition on.

Short-circuit control module connector #25 to ground. The lamp will go out if the combined instrument panel is functioning correctly.

Does the lamp go out?

Yes - Test Complete

No - Checking the Combined Instrument Panel
