Side Turn Signal Lamp(s)

AJ1 Replacing Side Turn Signal Flasher:

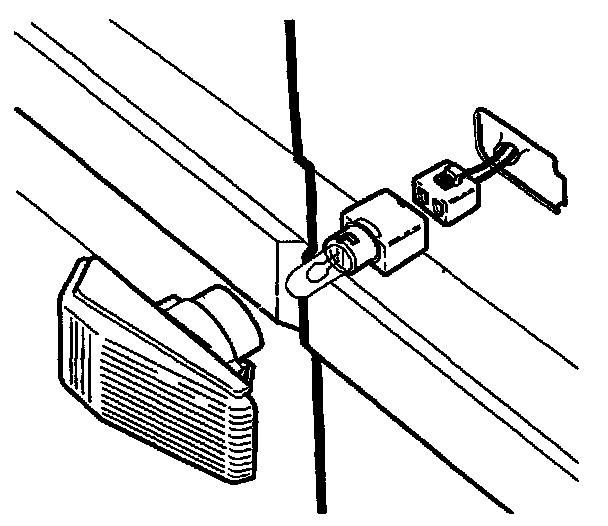

The side turn signal flasher consists of a lamp housing, bulb holder with a bulb and connector. See image. Replace lamp housing and bulb from outside.

For type of bulb, Refer to: "Lighting and Horns : Specifications" Specifications


- Turn Ignition off.
- Remove the lamp housing by pressing the lamp housing forwards and pulling out its rear edge and then releasing the lamp housing to release it from the fender.

Replacing Bulbs:
- Twist free bulb holder without disconnecting connector.
- Pull the bulb straight out and replace.
- For type of bulb, Specifications

Test turn signal flashers.

Replacing bulb holder:
- Twist free bulb holder and disconnect connector.
- Assemble in reverse order.

Test turn signal flashers.
