Replacing Tail Lamps, 4 Door

Replacing Tail Lamps - 4 Door


Position of Bulbs






The tail lamp is divided into an inner and an outer lamp.

The illustration shows the position of the bulbs on the right-hand side. The same applies to the left- hand side but in reverse.

For type of bulb, Refer to: "Lighting and Horns : Specifications" Specifications

The bulbs have the following functions:

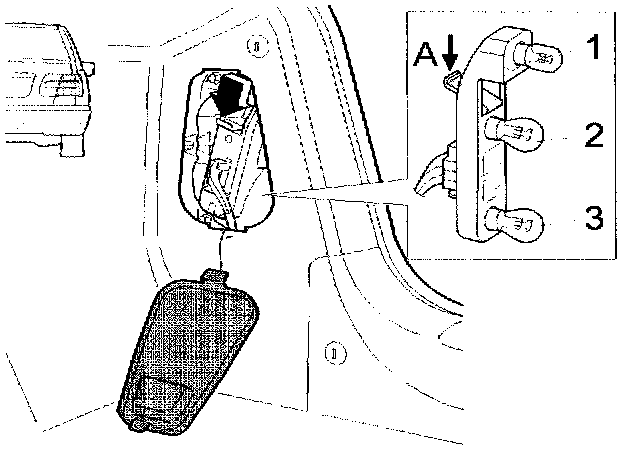

- 1 + 4 = Tail lamp/Parking lamps.
- 2 = Turn signal lamps.
- 3 = Stop (brake) lamp
- 5 = Back-up (reversing) lamp
- 6 Fog tail lamp, only on the left (LHD cars).

Replacing Tail Lamp Bulbs






Bulbs in the outer tail lamp are replaced from inside the cargo compartment. Bulbs in the inside tail lamp are replaced from inside the tailgate. Ignition off.

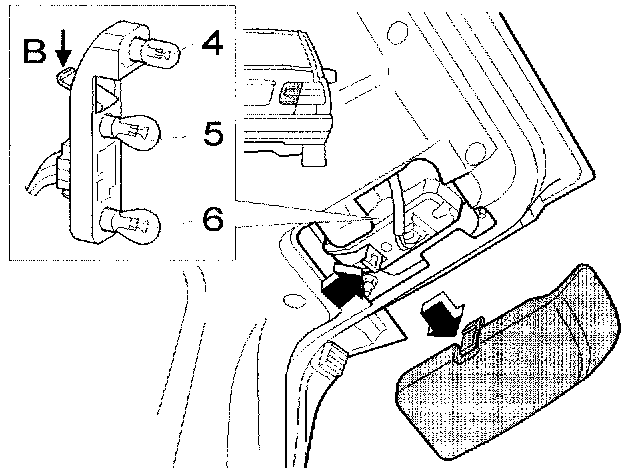

Open cover for the tail lamp. Release the catch and remove the bulb holder (clips at A and B).
Replace the faulty bulb.
Assemble in reverse order.

Test all bulbs.


Replacing Tail Lamp Assembly







Hint: The tail lamps can be replaced individually. Open cover for the tail lamp.

Disconnect tail lamp connectors and, if necessary, the towbar connector.

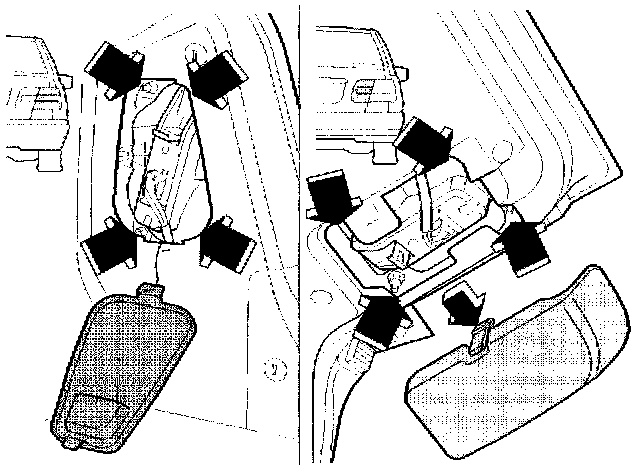

Unscrew the four nuts holding the tail lamp, see illustration. Pull the outer tail lamp straight back. The inner tail lamp is also secured with two small hooks. These must be pressed in towards the center of the tail lamp to release the it. These hooks hold the tail lamp in place while the nuts are being tightened.

Assemble in reverse order.

Note: Check seal and fit when reassembling.

Test all bulbs.
