Ash Tray Lamp: Service and Repair

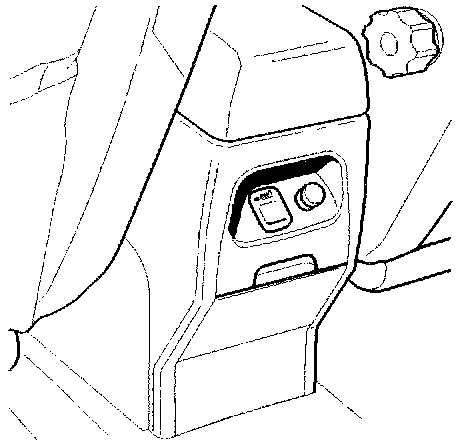

AI5 Replacing Bulb in Rear Ashtray Panel:






For type of bulb, Refer to: "Lighting and Horns : Specifications" Specifications

- Ignition off.
- Remove the ashtray.
- Press the entire panel upwards to release the lower edge. Pull the panel outwards to release the catches and pull out panel. Replace the bulb and reinstall the panel by pressing it in at the top and then the bottom.
- Check that bulb lights.
