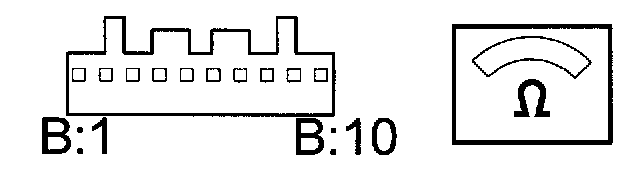

Check the ECC control module and combined instrument panel connectors for contact resistance and oxidation according to Checking wiring and terminals - Permanent faults. Checking Wiring and Terminals
Check signal cable between ECC control module #B1 and combined instrument panel # A6 for an open-circuit according to Checking wiring and terminals - Permanent faults, a short-circuit to ground according to Checking wiring and terminals - Permanent faults and a short- circuit to supply voltage according to Checking wiring and terminals - Permanent faults. Checking Wiring and Terminals

Corrective action as necessary.

Other information.

- To connect the breakout box, see Connection of Breakout Box ECC

After performing this procedure, Verification
