Checking the Compressor With Continuous Drive

Checking The Compressor With Continuous Drive

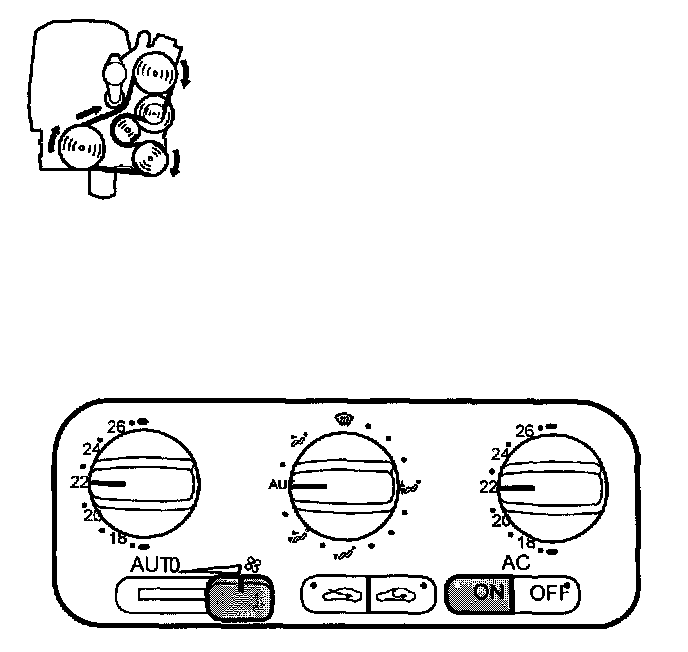

- Engine running.
- Air Conditioning (A/C) switch on.
- Blower fan switch on highest speed.

Check that the Air Conditioning (A/C) compressor runs continuously.

Is the compressor running continuously?

Yes - Refer to Checking Pipes and Components

No - Refer to Checking Pressure Switch (Pressostat)
