Removing the Cylinder Head

Special Tools
999 5199
999 5452
999 5454
999 5670

Note! As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the essential information in the illustrations is always correct.

Removing the camshaft pulleys

Engines without variable valve timing
Mark up the camshaft pulleys (both exhaust and intake).





Remove the screws securing the camshaft pulleys to the camshafts. Use counterhold 999 5199.

Caution: The camshafts must not be turned when the timing belt has been removed.

Engines with variable valve timing
Install tool 999 5452 at the rear edge of the camshafts.

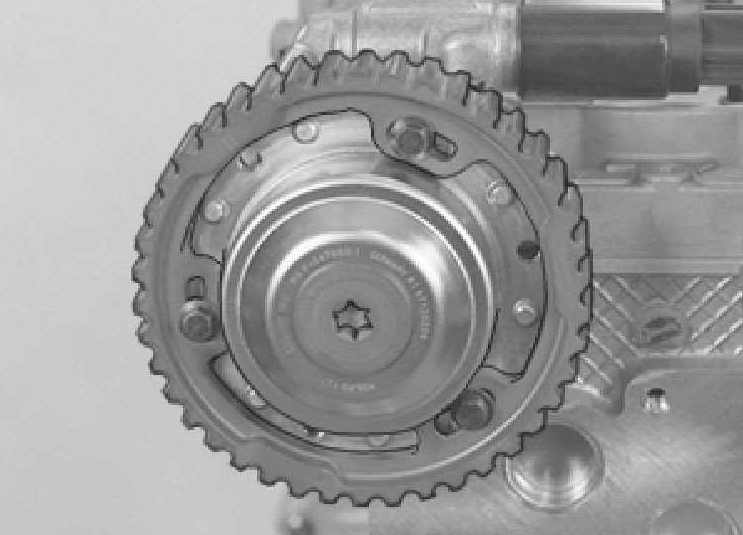

Remove the plug at the front edge of the variable valve timing unit (Tx 55).
Remove the center screw from the variable valve timing unit (Tx 55).
Carefully pull out the camshaft pulley with the variable valve timing unit.

The following applies to camshafts without variable valve timing:
Remove the screws.
Pull off the camshaft pulley.
Remove tool 999 5452

Caution: The camshafts must not be turned when the timing belt has been removed.

Removing the camshaft cover





Remove the variable valve timing unit control valve.
Remove the spark plugs from cylinders 1 and 5.

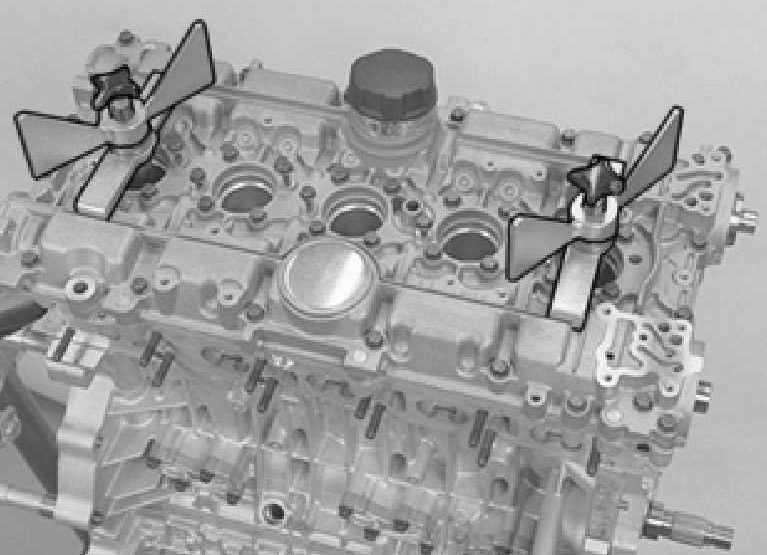

Install tool 999 5454 (x2) with 2 - 3 mm (0.08 - 0.1 inch) clearance to the camshaft cover.
Ensure that the screw in the spark plug well is tightened as far as it will go.
Remove all the screws securing the camshaft cover to the cylinder head

Slacken off

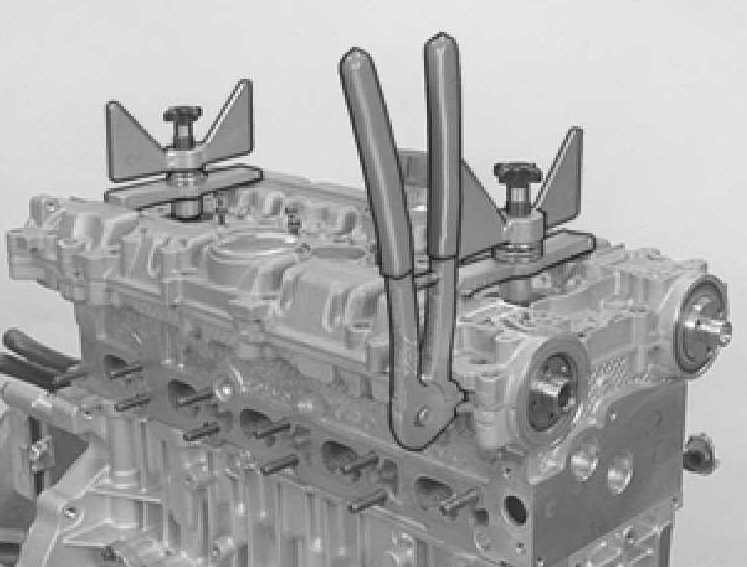

- the camshaft cover with pliers 999 5670 at the stop lugs. Start with cylinder 1 and work alternately backward.
- the wing nuts approximately 2 turns. Repeat the procedure with the pliers.

Remove
- tool 999 5454
- the camshaft seals at both the front and rear edges.
- the camshaft cover.





- the camshafts. Work loose and lift at the same time.

Note! Take care not to damage the axial bearings.

Removing the cylinder head
Remove the pipe screw for the water heated crankcase ventilation at the rear edge of the cylinder head.
Slacken off the cylinder head screwed joint. Start at the sides and work alternately towards the center.

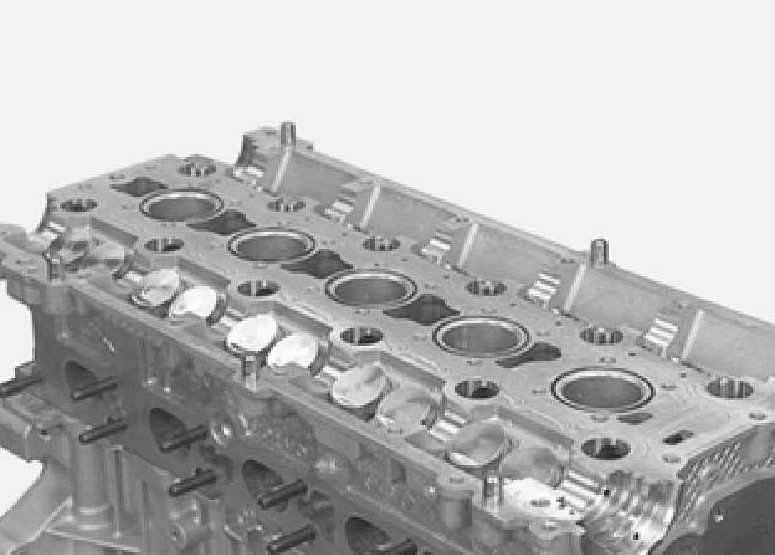

Lift out the cylinder head.

Note! Take care not to damage the mating surfaces.
