Exposing the Engine Body

Special Tools
998 9721
999 2520
999 5112
999 5297

Note! As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the essential information in the illustrations is always correct.

Removing the transmission

Hint: Remove the lower screws (these are difficult to access) between the transmission and engine before removing the engine and transmission unit. The engine and transmission unit must be placed on a suitable surface.

Take the weight off the transmission. Remove the remaining screws. Carefully remove the transmission.
Remove the clutch. Refer to Transmission and Drivetrain.

Removing the flywheel and carrier plate
Install gear sector 999 5112.

Remove all screws except for the uppermost screw which secures the flywheel to the crankshaft. Slacken off the uppermost screw. Leave it in place, screwed in a few turns.
Carefully work the flywheel and carrier plate loose. If necessary, use 2 groove-cut chisels. Apply these between the cylinder block and the flywheel and carrier plate.
Hold the flywheel and carrier plate and remove the final screw.
Install the engine in a stand
Use mounting stand 999 2520, fixture 999 5297 and screw set 998 9721.

Exposing the engine
Remove

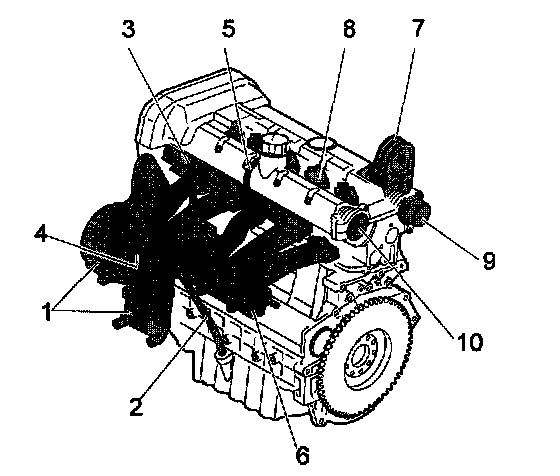

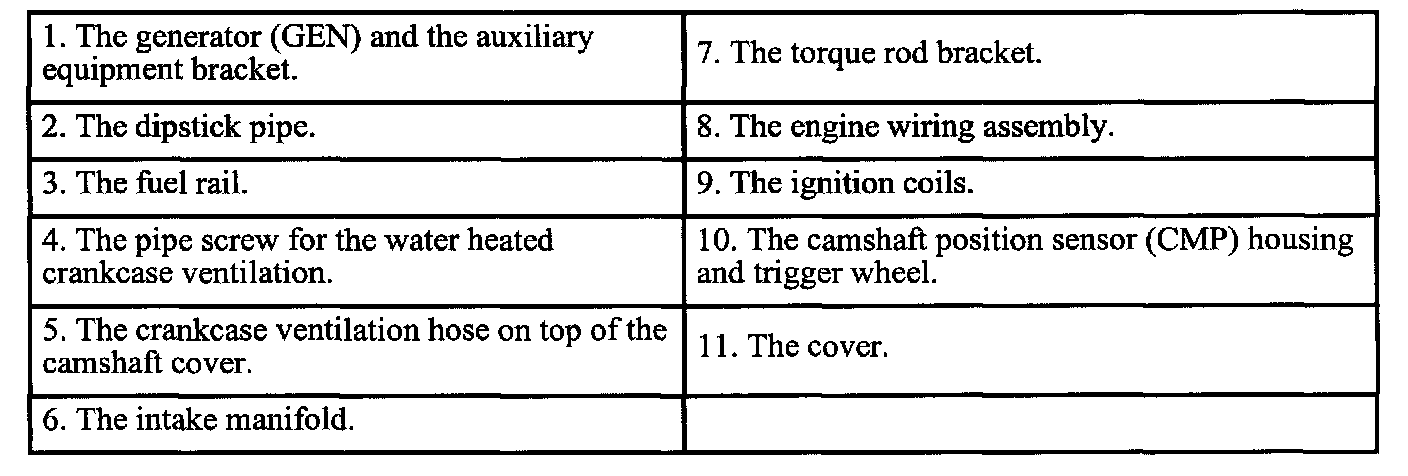

Part 1 Of 2:

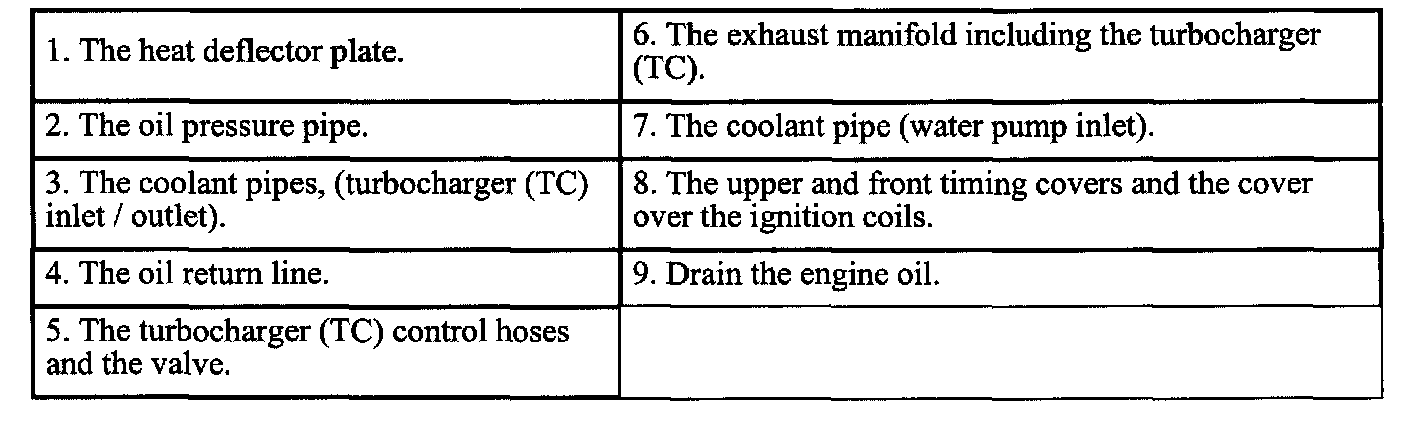

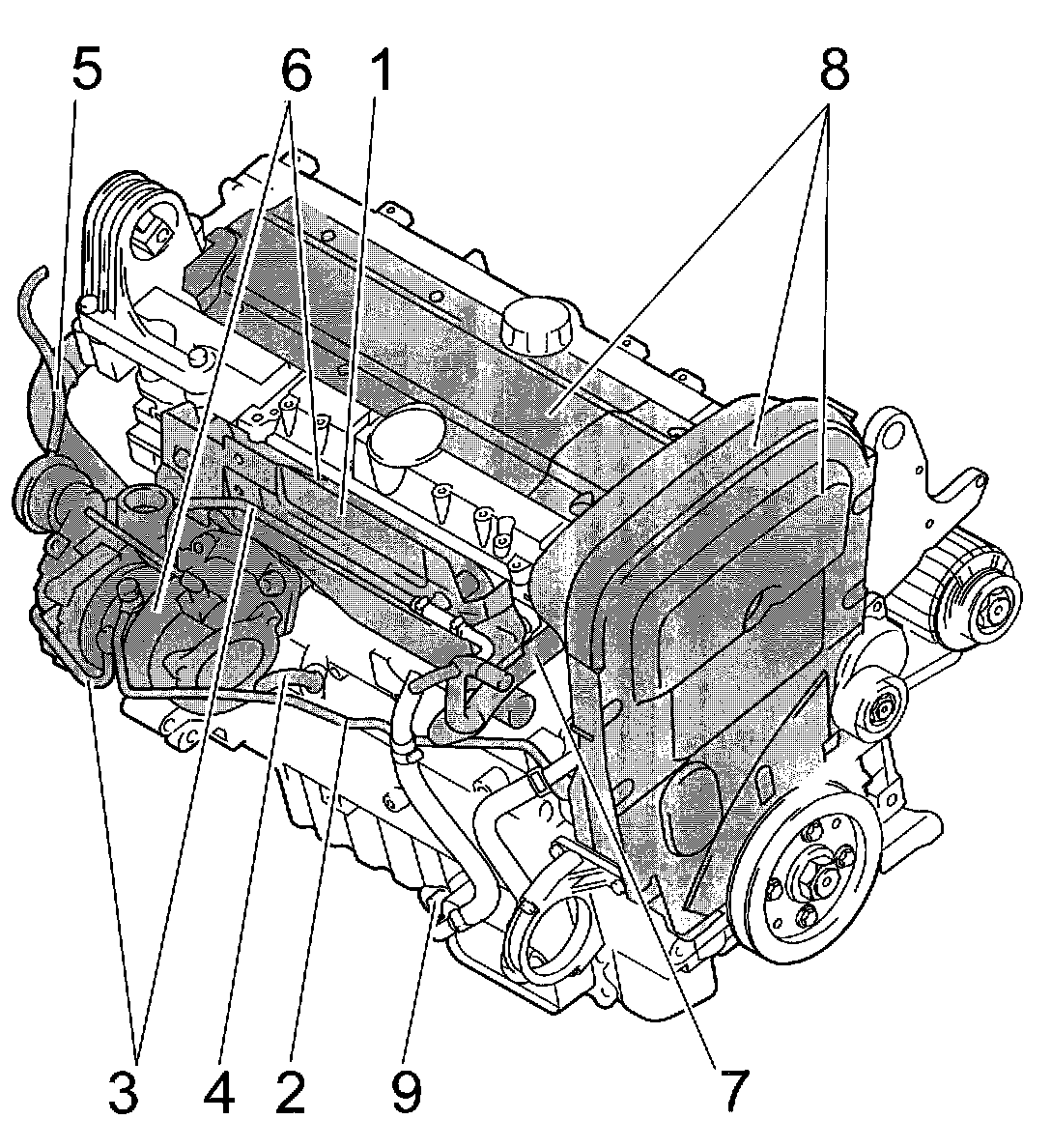

Part 2 Of 2:

Remove
