Factory Sealed Bolts

Method for sealing bolts
Factory sealed bolts are used where it is necessary to have a strong seal. Whenever specific bolts are loosened or replaced, reseal them with new sealing compound Hydraulic Thread Seal. Sealing must be carried out according to the instructions on the packet.

Sealing compound





Hydraulic thread seal--p/n 1161056-5 (50 ml.)

Locations
The following bolts must be sealed with Hydraulic Thread Seal when being replaced/retorqued.

Intake side

Intake Side (Part 1 Of 2):

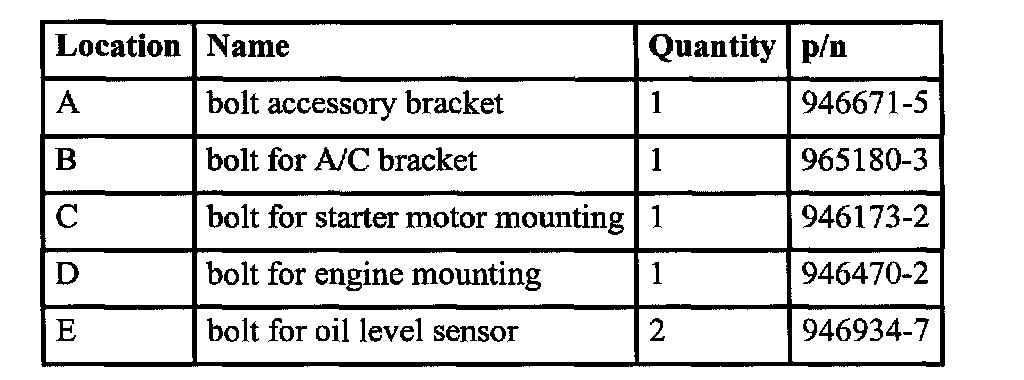

Intake Side (Part 2 Of 2):

Exhaust side

Exhaust Side (Part 1 Of 2):

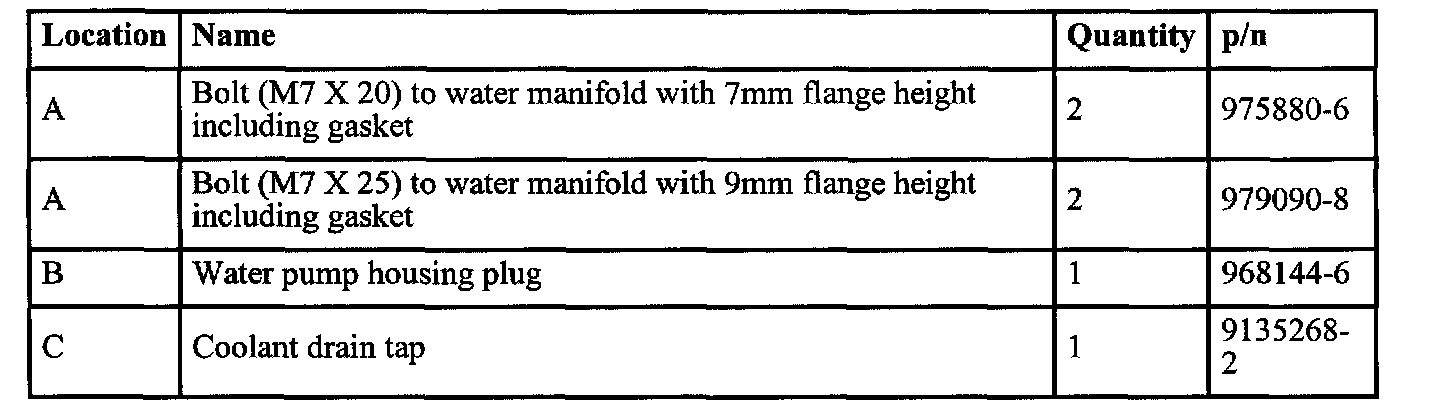

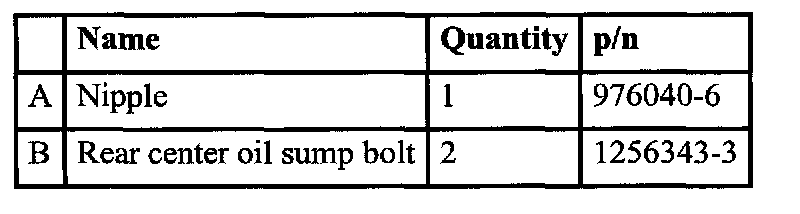

Exhaust Side (Part 2 Of 2):

Rear side

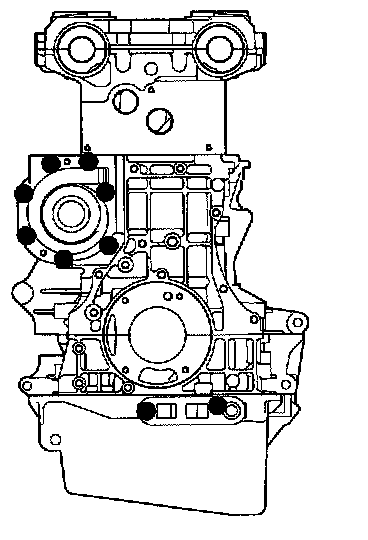

Rear Side (Part 1 Of 2):

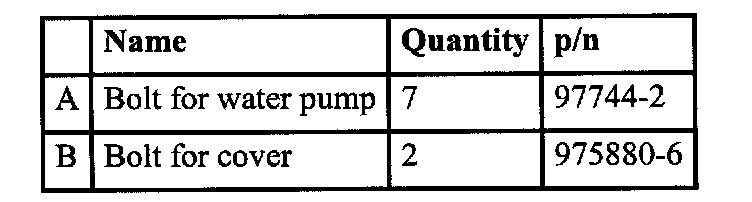

Rear View (Part 2 Of 2):

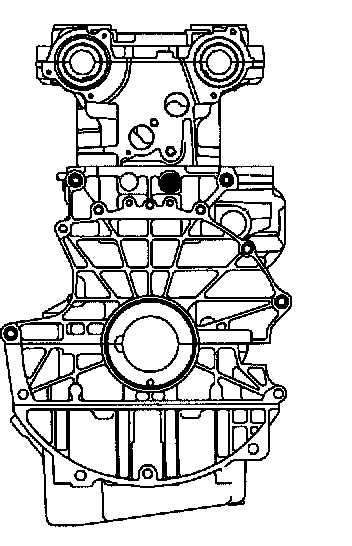

Front side
