Brake Pedal Assy
Brake Pedal Assy

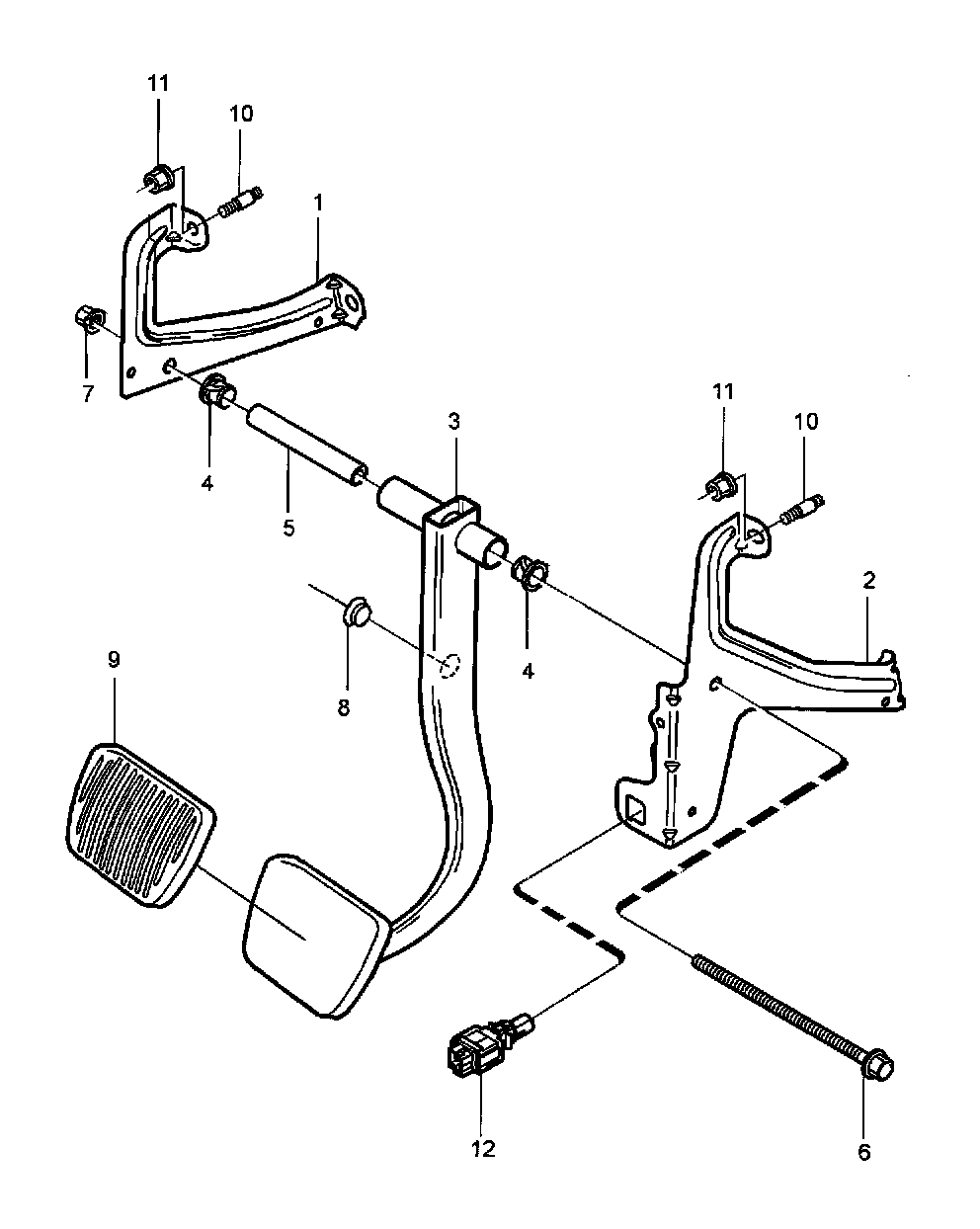

Part 1 Of 2:

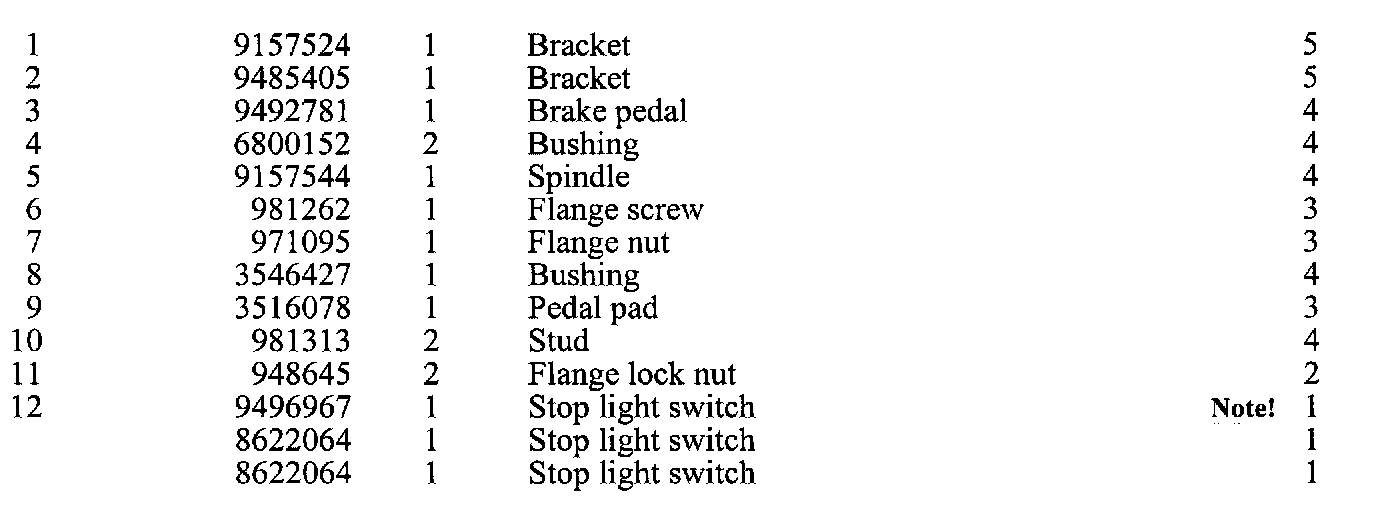

Part 2 Of 2:
Brake pedal with assembly parts. AUTO.TRANS, L.H.D
