Map Light

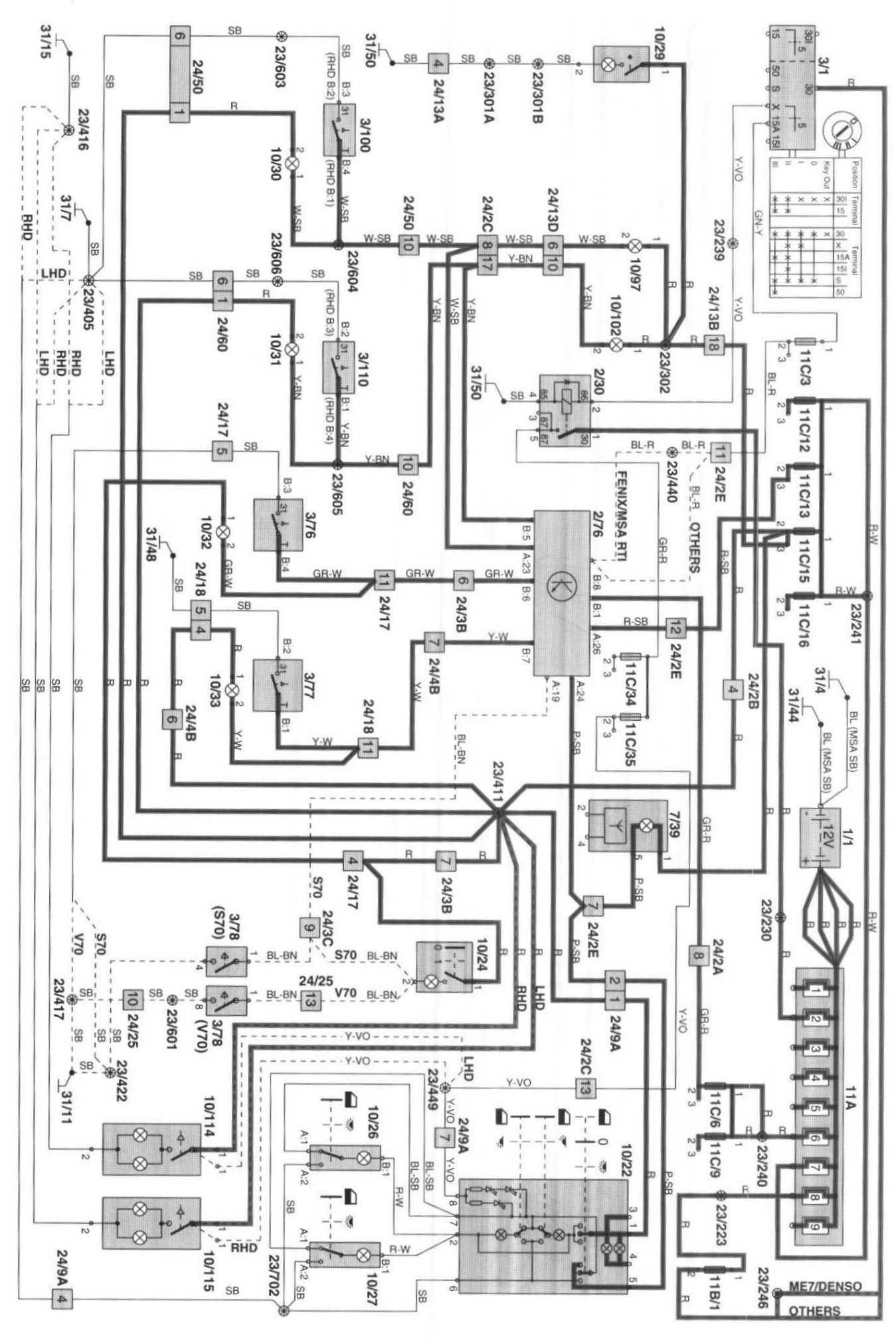

Interior Lighting S70, V70 - Wiring Diagram:

Interior Lighting S70, V70 - Component Location:

To identify components from the numeric designation, see "Component I.D List (Name and Numeric Designation)". Diagram Information and Instructions
