Signal Description

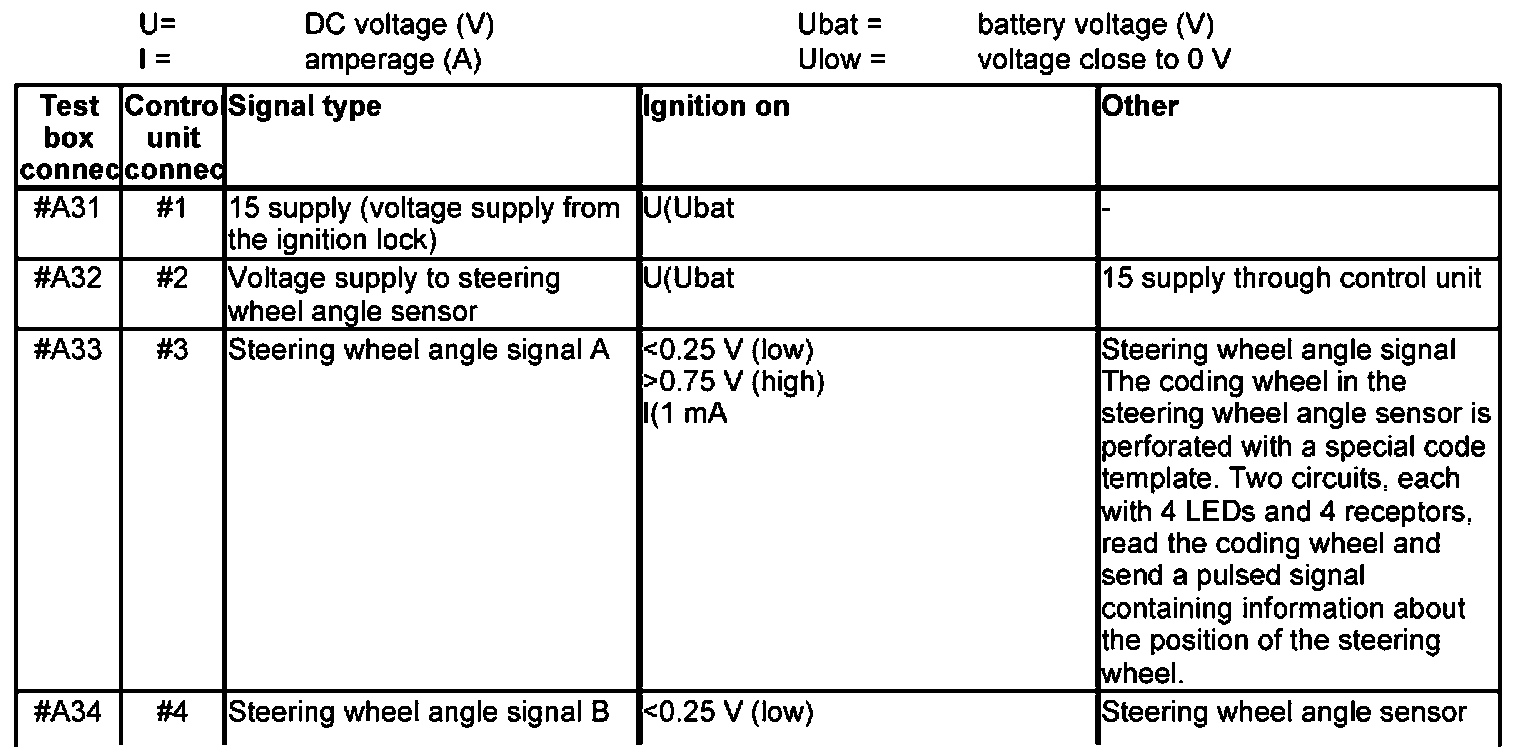

Signal description, Control unit for the steering wheel angle sensor (SAS)

The values in the table represent the values between the connections shown in column 1 and #A46 (ground), unless otherwise stated in brackets.

Note! It is important that the test box is connected and the ground points checked before testing begins.
