Replacing Sun Roof Weatherstrip
REPLACING SUN ROOF WEATHERSTRIPRemoving weatherstrip
Adjusting the glass sun roof weatherstrip when replacing it. The weatherstrip seal lip must be removed from the rear edge and sides of the sun roof when the weatherstrip is replaced. The seal lip should only be left between the rails at the front of the sun roof. The lip is to prevent the sun roof from lifting when driving at high speed.
Note: Take care not to scratch the sun roof when removing it.
Remove the sun roof (see Replacing Sun Roof) and place it upside down on a soft and clean surface.
Remove the old weatherstrip
Position the end of the new weatherstrip in the middle of the rear edge of the sun roof and press it into place on the sunroof frame up to the front corner. Continue as follows.
Installing weatherstrip guide

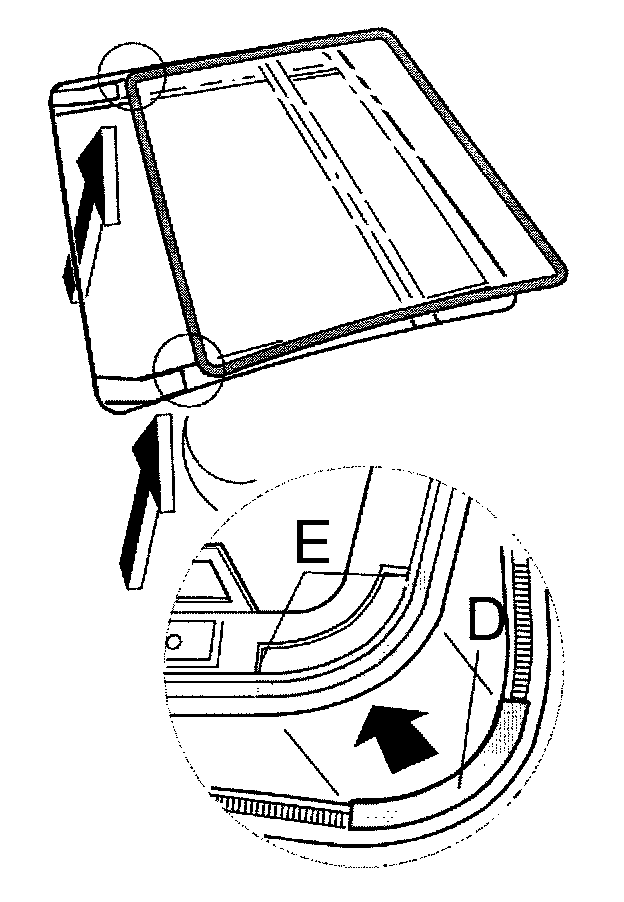

Install a plastic weatherstrip guide (D) on the weatherstrip at one front corner on the inside of the sun roof as illustrated.
Press the weatherstrip and guide into place on the metal frame of the glass sun roof.
Press the weatherstrip into place up to the next corner and install another weatherstrip guide in the same way as the first.
Press the weatherstrip into place around the entire sun roof.
Note: Locate the weatherstrip guide against the outer edge of channel (E) in the sun roof frame as indicated by the arrows.
Cutting weatherstrip

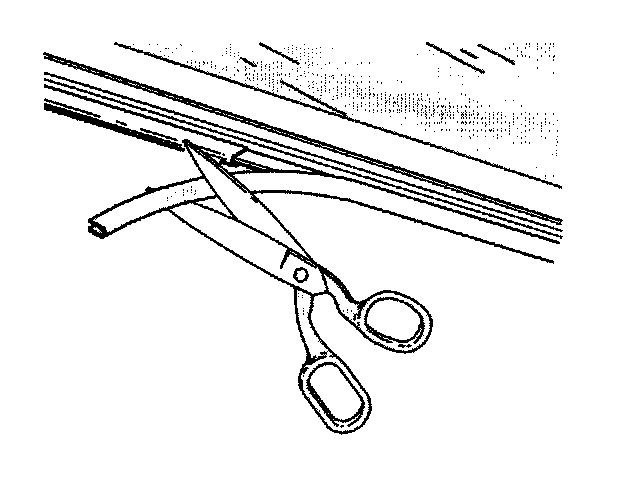

Position the weatherstrip join in the middle of the rear edge of the sun roof. Cut off the excess weatherstrip with scissors (P/N 998 6096 -6).
CAUTION: Use sharp scissors of the correct type so that the cut is smooth and straight. This will provide good adhesion for the bonded joint, see illustration.
Bonding the weatherstrip

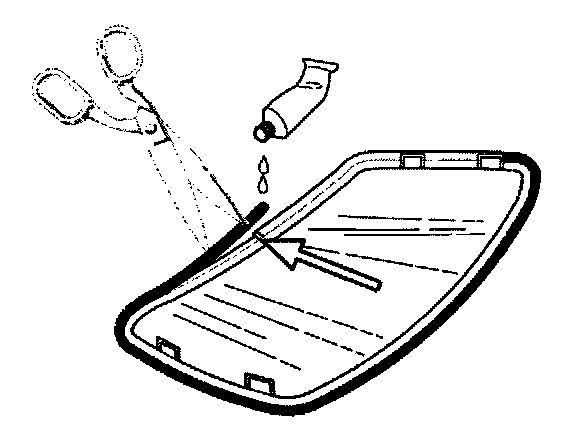

Bond both ends of the weatherstrip with adhesive (PIN 1161095-3).
Removing the weatherstrip seal lip
- Place the sun roof on top of the frame as illustrated.

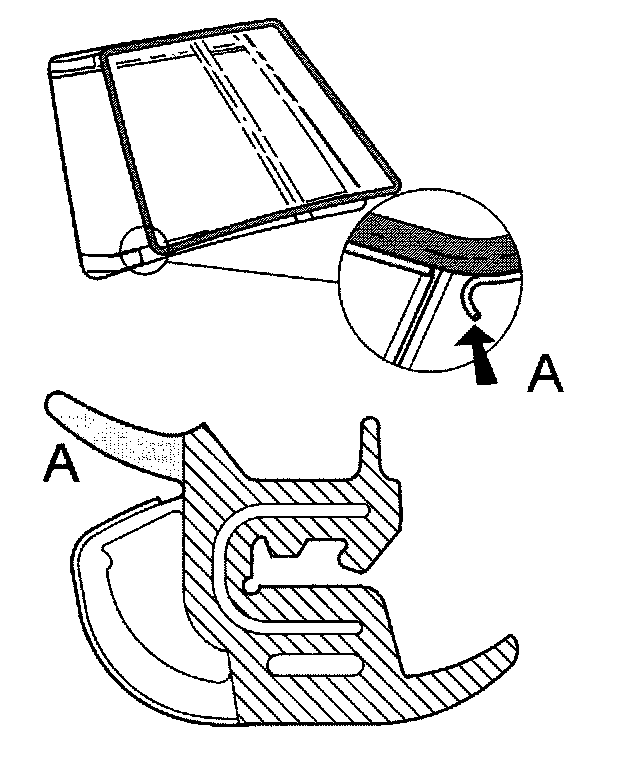

- Cut the front edge (A) of the seal lip by both rails as illustrated.
- Pull the seal lip (A) (lower illustration) from the cut back to the weatherstrip joint at the rear edge of the sun roof. There is a channel along the seal lip to make it easy to pull off the weatherstrip.
