Heated Rear Window and Heated Door Mirrors

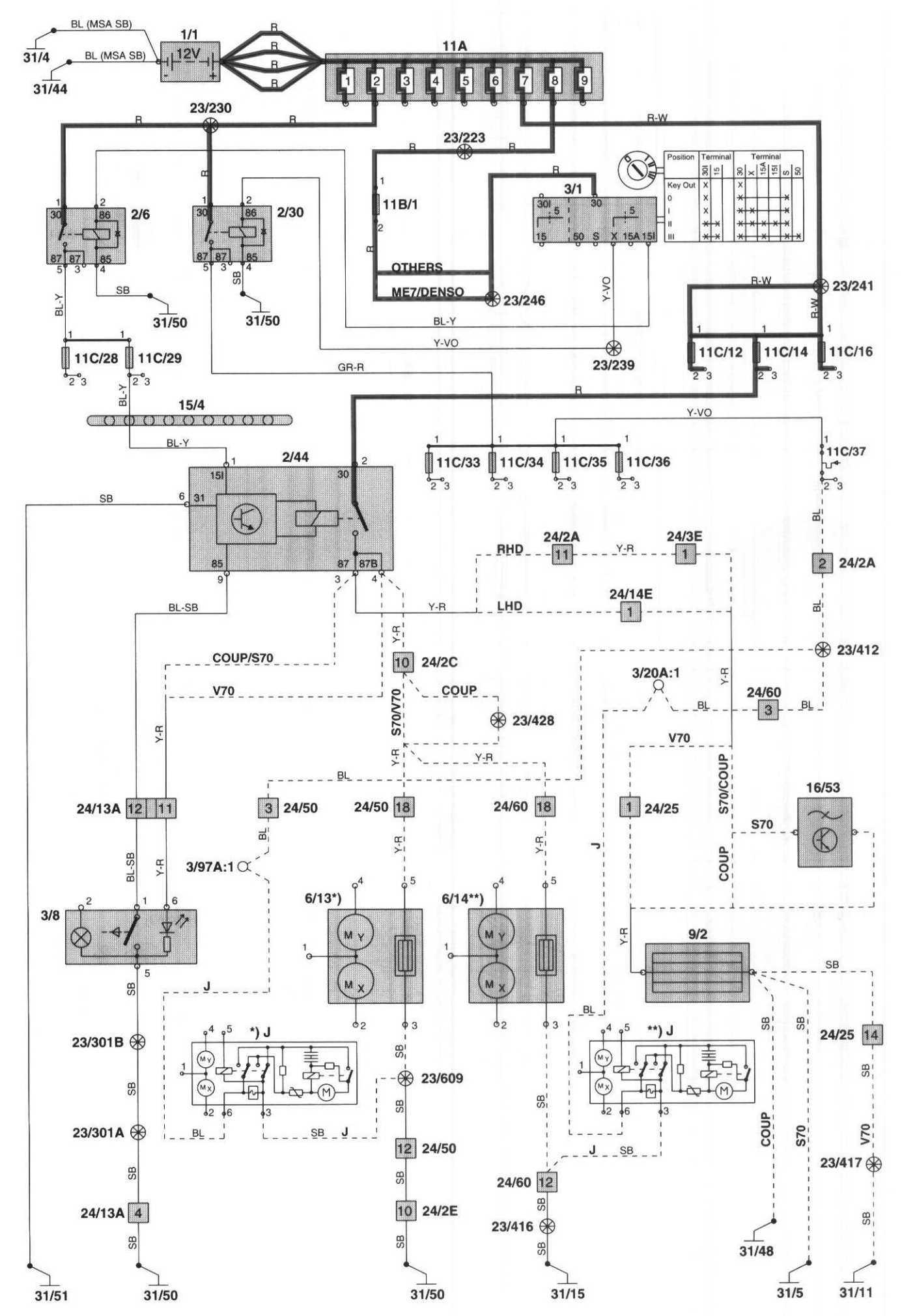

Heated Window C70 Coupe, S70, V70 - Wiring Diagram:

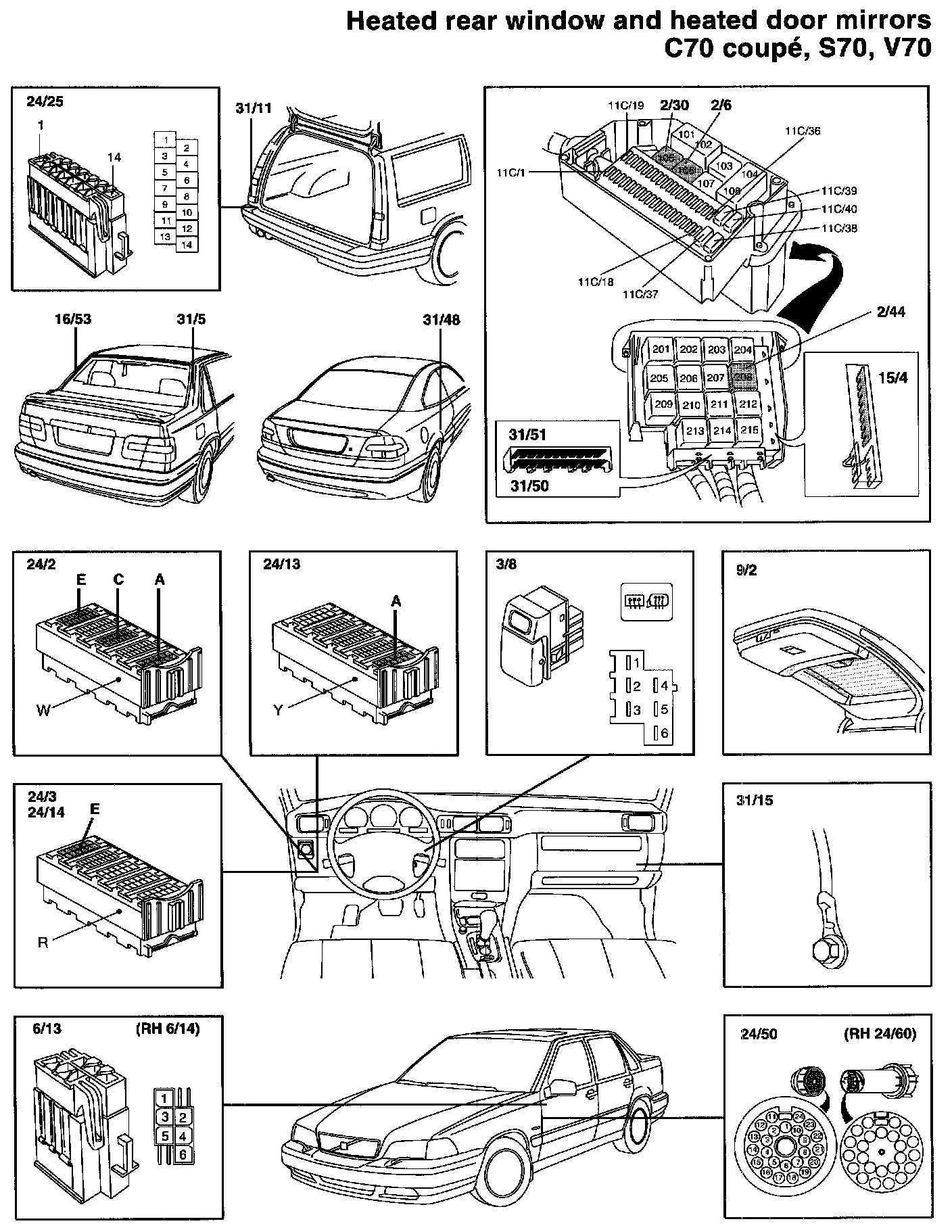

Heated Window C70 Coupe, S70, V70 - Component Loc.:

To identify components from the numeric designation, see "Component I.D List (Name and Numeric Designation)". Diagram Information and Instructions
