Trunk/Liftgate Lock Cylinder
Trunk/Liftgate Lock Cylinder

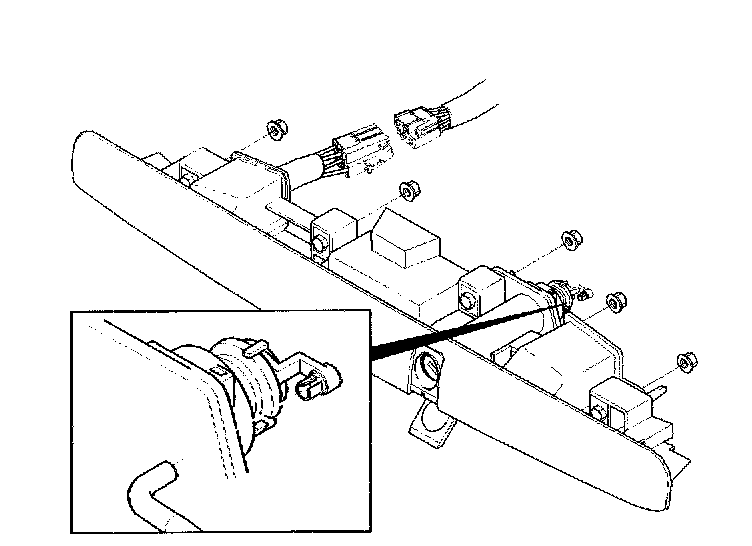

CA3. Handle
10 mm (0.4 in.),
M6 nuts.

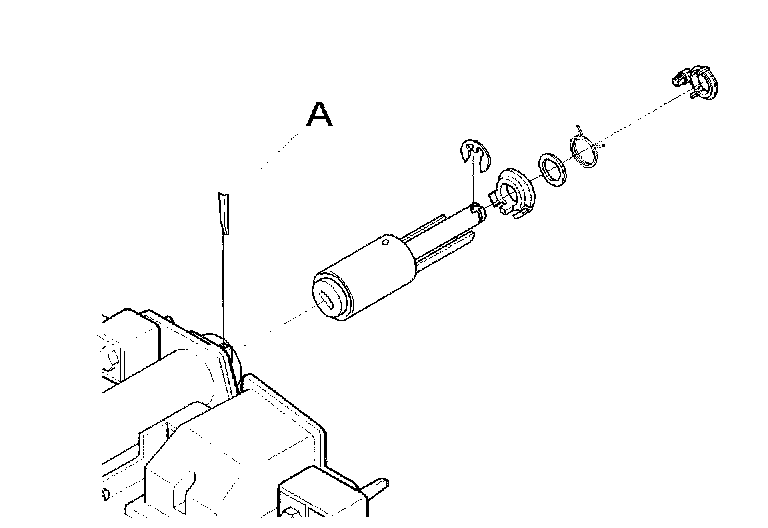

CA4. Lock Cylinder
Pull out pin (A) to remove the lock cylinder.
