Trunk / Liftgate Hinge: Service and Repair

Removal:

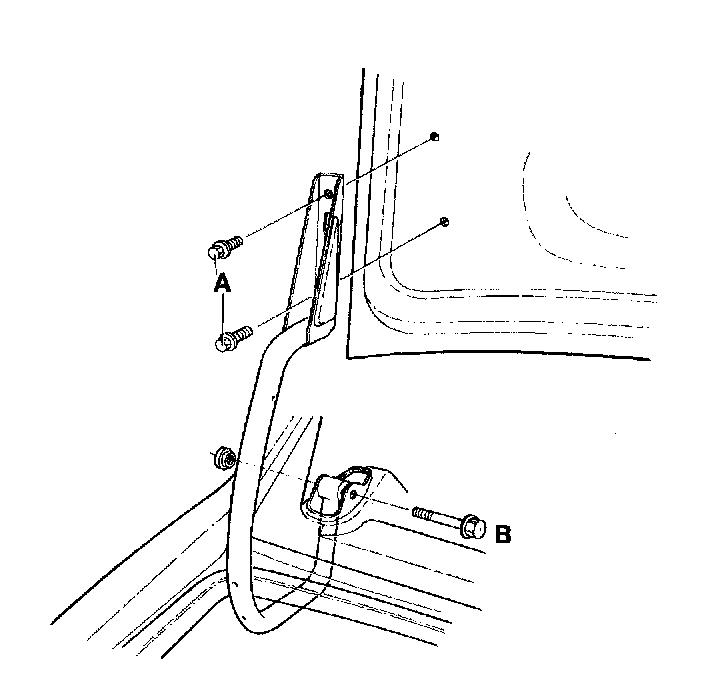

Remove:
- Connectors.
- Hinge/trunk screws (A).
- Bolts (B) in the hinge under the parcel shelf.

Adjustment





- Adjust the hinge under the parcel shelf.

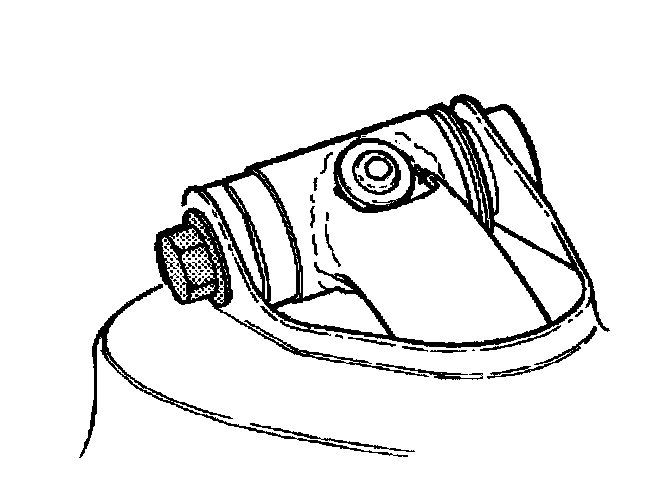

- Adjust up and down at the front and adjust front-rear by turning the eccentric nut on the hinge, until the trunk is flush with the bodywork.
