Power Trunk / Liftgate Lock Actuator: Service and Repair

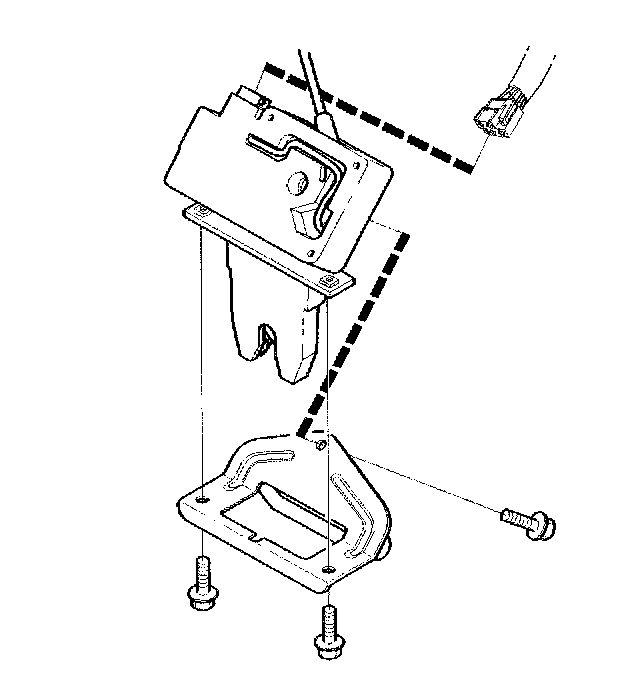

ZZB1. Removing trunk lid lock unit (4-door)
Remove lock unit

ZZB2. Installing trunk lid lock unit (4-door)
Install lock unit

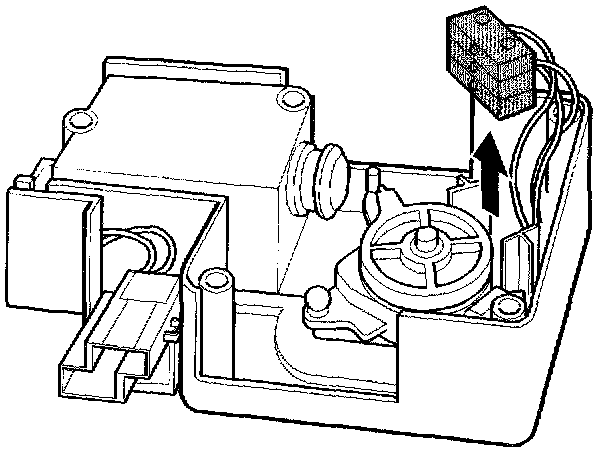

ZZB3. Removing Lock Unit Switch (4-door)





Remove:

lock unit.
cable from the slot on the reverse. Switch up.
connector and pull out wiring. Note position of wiring in switch.
pins from the switch.
switch with cable.


ZZB4. Installing Lock Unit Switch (4-door)





Install:
switch and cable through hole.
Note the position of the switch.
Route cable to connector.
pins in connector
switch in mounting.
cable in slot on reverse.
cover.
lock unit..

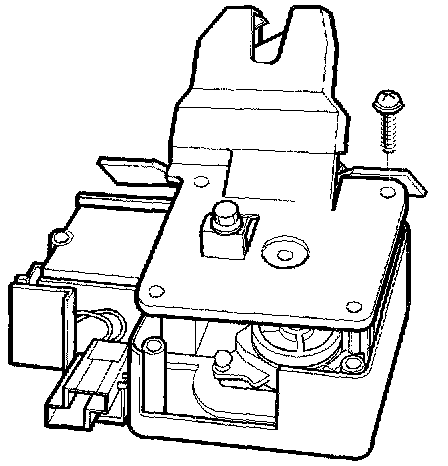

ZZB5. Removing Lock Unit Motor (4-door)





Remove:
lock unit.
cover.

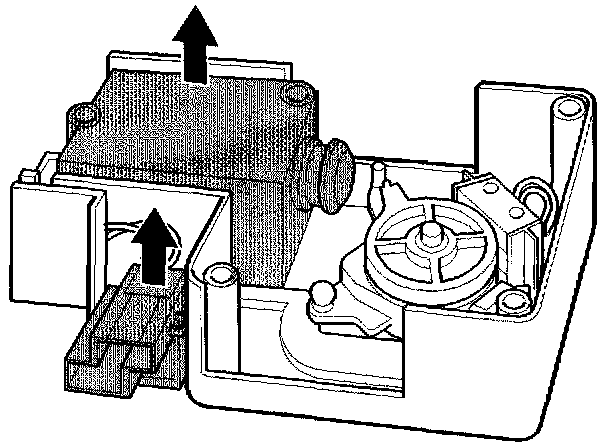

Motor up.
switch from mounting.
pins from the connector.
Note position of wiring in switch.
motor with cable.


ZZB6. Installing Lock Unit Motor (4-door)

Install:
pins in switch.
Note position of wiring in switch.
motor.
cable in slot on reverse.
cover.
lock unit.





CA5. Lock Unit
