Verification

Verification







HINT: After carrying out the repair, check that the fault has been remedied.

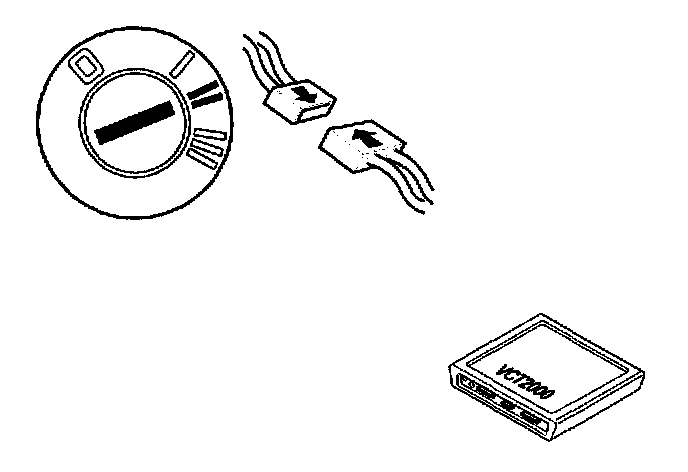

- Ignition off.
- Reinstall the components, reconnect the connectors etc.
- Ignition on.
- Gear selector in position P.
- Activate solenoids S4 and S5 individually.

Read off the current in the circuit. The current should oscillate between 0 and approximately 1 A.

Does the current oscillate?

YES: Refer to Trouble Code Descriptions. Diagnostic Trouble Code Descriptions
NO: Continue with Next Procedure. Fault-Tracing Information - Permanent Fault
