Checking the Wiring

Checking The Wiring

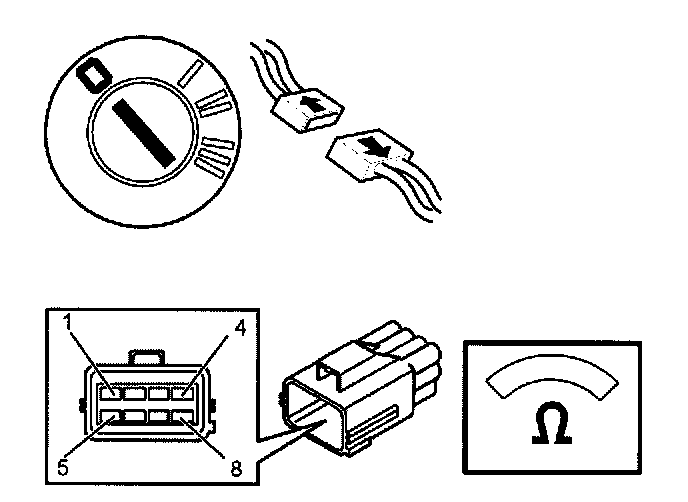

- Ignition off.
- The breakout box connected.
- Disconnect transmission connector D.

Check the cable between control module terminal #A52 (#A52) and transmission connector terminal #D3 (control module side). Check for a short-circuit to ground according to Checking wiring and terminals. Permanent faults.

Check the cable between control module terminal #B10 (#A70) and transmission connector terminal #D4 (control module side). Check for a short-circuit to ground according to Checking wiring and terminals. Permanent faults.

Remedy as necessary.

Other information:
- To connect the breakout box, see Connecting the breakout box.
- To disconnect the transmission connectors, see Connectors, transmission, disconnecting/connecting.
- For information about signals, see Signal description. Transmission control module (TCM).

Was a fault detected?

YES: Continue with Next Procedure. Verification
NO: Refer to Checking The Control Module. Checking the Control Module
