Checking Resistance

Checking Resistance

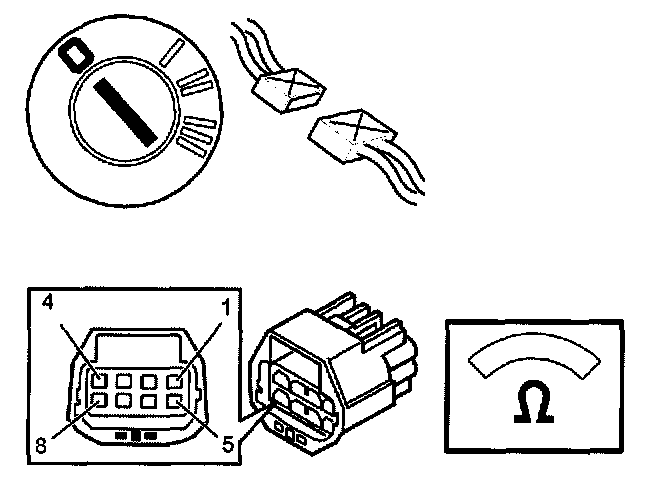

- Ignition off.
- Transmission connector D disconnected.

Check the circuit for solenoid SLT. Measure the resistance between terminals #D3 and #D4 on transmission connector D. The resistance should be 5 - 5.6 Ohms at 20 degree C.

Other information:
- To disconnect the transmission connectors, see Connectors, transmission, disconnecting/connecting.
- For information about signals, see Signal description. Transmission control module (TCM).

Was the resistance OK?

OK: Continue with Next Procedure. Refer to Checking The Wiring.
NOT OK: Refer to Checking the Wiring and Component. Checking The Wiring and Component
