Checking The Wiring and Component

Checking The Wiring And Component










- Ignition off.
- Open the gearbox control system.

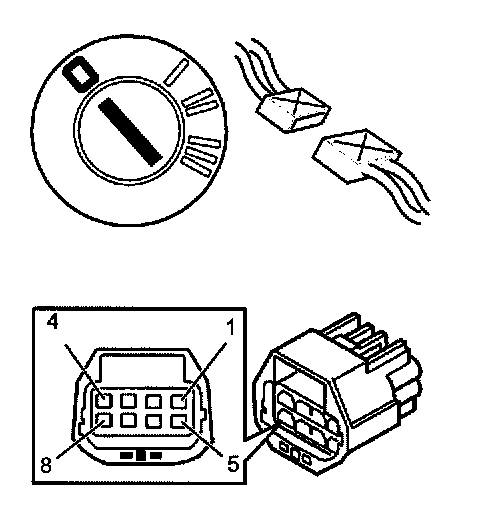

Check the connector. Check for damage and pressed in pins.

Check the wiring between transmission connector terminal #D3 and solenoid SLT terminal #1.

Check the wiring between transmission connector terminal #D4 and solenoid SLT terminal #2.

Check for a short-circuit to supply voltage. Also check against the other cables in the circuit. Use the relevant wiring diagram.

Check the solenoid SLT by measuring the resistance between terminals #1 and #2. The resistance must be 5 - 5.6 Ohms at 20 degree C. Replace the transmission control system if the resistance is incorrect.

Other information:
- Signal description. Transmission control module (TCM)
- Connectors, transmission, disconnecting/connecting.
- Solenoid control system, replacing.
- To replace the cable harness for the control system: Wiring harness/oil temperature sensor, replacing.
- Checking wiring and terminals. Permanent faults.

Continue with Next Procedure. Refer to Resetting Adaptation and The Counter For "Transmission Oil Change".
