Checking Wiring

Checking Wiring






- Ignition off.
- Disconnect the collision sensor connector.
- Disconnect the control module connector.

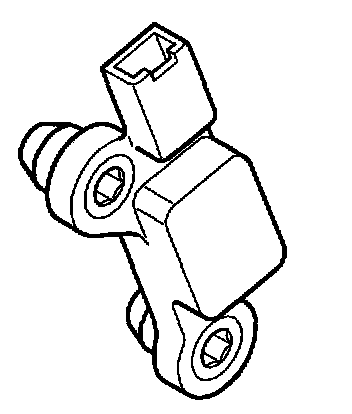

Hint: The sensor transmits a live signal to the Control module. This allows the control module to check communication with the side impact sensors. If the signal is missing, a diagnostic trouble code (DTC) is stored.

Check the connectors for contact resistance and oxidation according to Checking wiring and terminals - Permanent faults.

Check the cable between side impact sensor connector #11 and control module connector #21 for an open-circuit according to Checking wiring and terminals - Permanent faults and for a short-circuit to ground according to Checking wiring and terminals - Permanent faults and for a short-circuit to ground.

Repeat the measurement above, but on the cable between side impact sensor connector #2 and control module connector #33, and on the cable between side impact sensor connector #2 and control module connector #46.

Remedy as necessary.

Checking Wiring and Terminals - Permanent Faults

Was a fault detected?

This information to be published by O.E. at a later date.
