Signal Too High - Intermittent Fault

Checking Cable

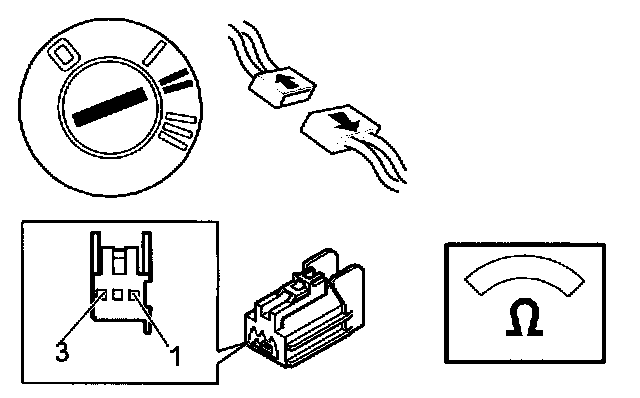

- Ignition off.
- Disconnect the seat belt buckle connector
- Ignition on.

Check seat belt buckle connector #2 for an intermittent short-circuit to Supply voltage according to Checking Wiring and Terminals - Intermittent Faults

Also check for contact resistance and oxidation according to Checking wiring and terminals - Intermittent faults.

Remedy as necessary.
