Diagnostic Trouble Code Information

Diagnostic Trouble Code Information







Condition

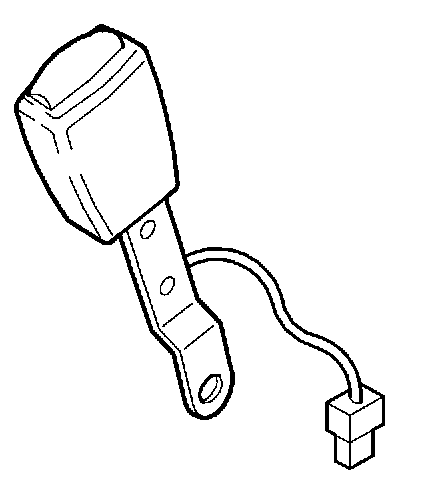

If the voltage is too high in the seat-belt buckle for 3-5.5 seconds, diagnostic trouble code SRS-524 is set.

Condition
- Nothing.

Possible source
- Faulty seat-belt buckle.
- Short circuit to voltage supply in the wiring or in the connector.

Condition
- SRS warning lamp comes on.
