Diagnostic Trouble Code Information

Diagnostic Trouble Code Information







Condition
If the voltage in the circuit is too high for more than 3 seconds, diagnostic trouble code SRS-224 will be set.

Possible source
- Short-circuit to voltage supply in the signal lead or in the passenger airbag

Condition
- No fault symptom other than SRS warning lamp on.


WARNING

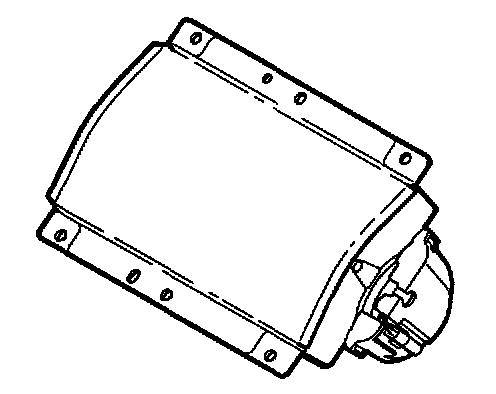

There is a risk that the SRS passenger airbag module will not function if this diagnostic trouble code is set.
