Signal Too Low - Intermittent Fault

Checking The Components

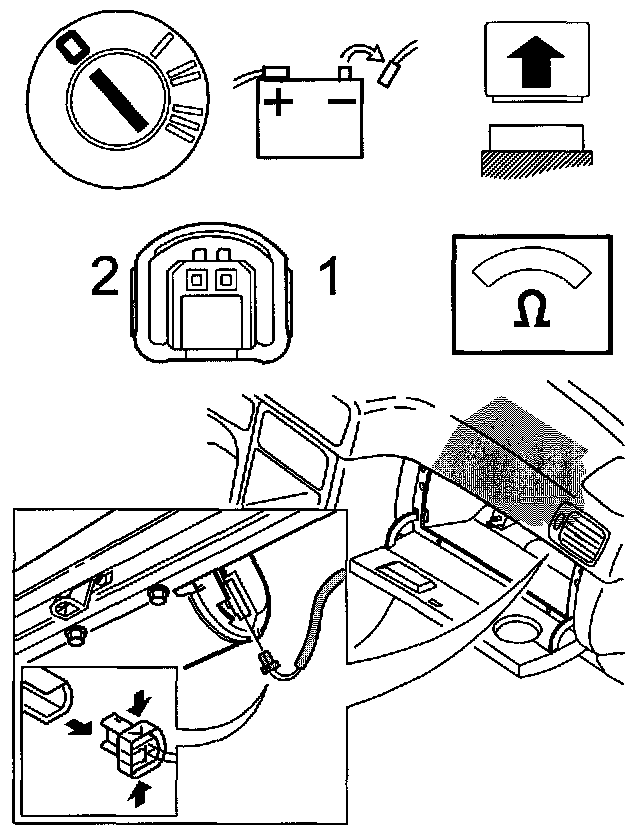

- Make a note of any radio code.
- Ignition off.
- Disconnect the battery negative lead.
- Disconnect connector from passenger airbag.
- Disconnect the control unit.


WARNING
Never use an ohmmeter or any other charged measuring instrument on a disconnected, undeployed airbag module. There is a risk that the airbag could be deployed!


Connect an ohmmeter between passenger airbag #1 and ground and check for an intermittent short circuit to ground, as described in Checking wiring and terminals - Intermittent faults.

Do the necessary corrective action.

Checking Wiring and Terminals - Intermittent Faults
