Signal Too Low - Intermittent Fault

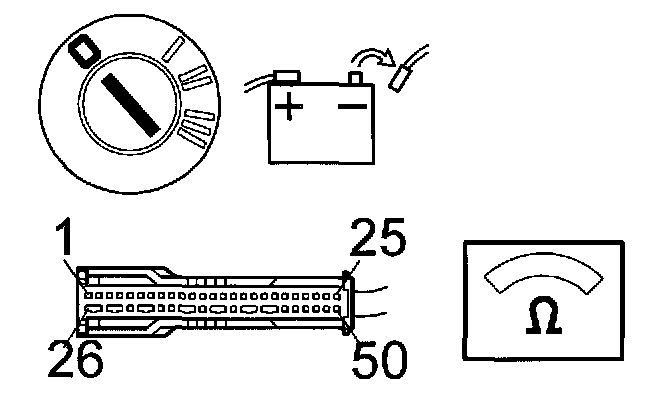

Checking Connector







- Make a note of anti-theft radio code.
- Ignition off.
- Disconnect battery negative lead.

Remedy ignition switch and control module connector for contact resistance and oxidation according to Checking wiring and terminals - Intermittent faults.

Check for damage etc..

Check cable between battery and ignition switch and cable between ignition switch and control module #5 for an intermittent open-circuit according to Checking wiring and terminals - Intermittent faults or an intermittent short-circuit to ground according to Checking wiring and terminals - Intermittent faults.

Checking Wiring and Terminals - Intermittent Faults

Remedy as necessary.
