Diagnostic Trouble Code (DTC) Information

Diagnostic Trouble Code (DTC) Information







Condition
Diagnostic trouble code (DTC) PSL/PSR-422 is set if supply voltage to the control module falls below 8 V.

Possible source

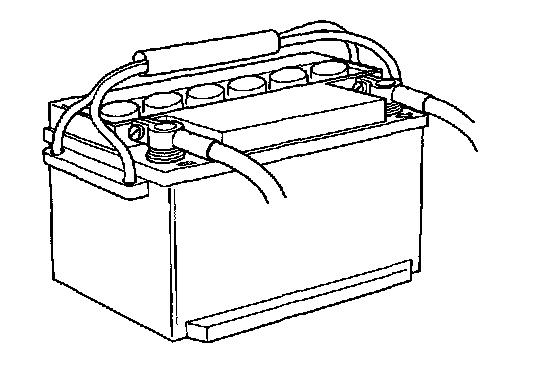

- Battery Supply to position A:1 is too low or has at some point been too low,
- Defect in wiring to the seat.
- Defective control module.

Condition
- Seat does not operate.
- Memory buttons do not function
