Diagnostic Trouble Code (DTC) Information

Diagnostic Trouble Code (DTC) Information:





Condition

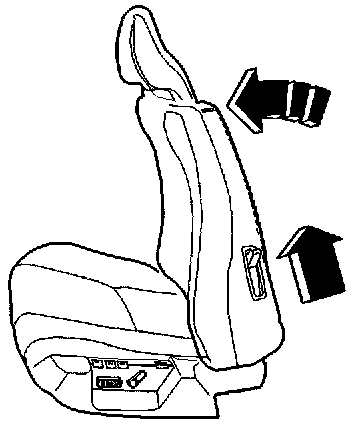

- When the backrest switch is activated (by raising the lever) and when the seat the is folded forwards the seat automatically begins to move forward to a preprogrammed position called the entry position. It the entry position is not programmed the diagnostic trouble code (DTC) PSL/PSR-331 is stored.

Possible source
- No entry position has been programmed.
- The programming function is not working.
- Defective control module.

Fault symptom(s)
- The seat does not move forward when the backrest is folded.
